Panel PC

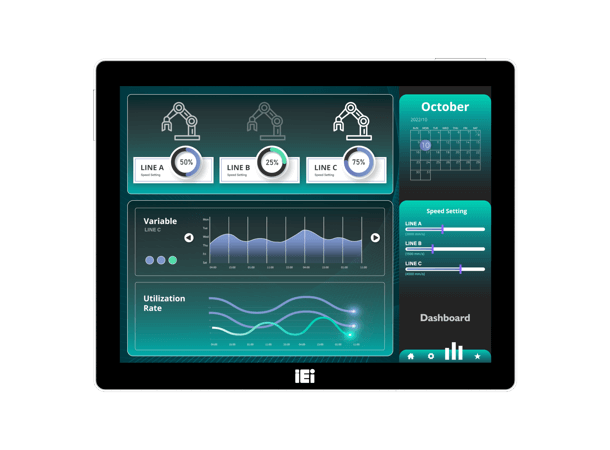

AFL4-121-ADLP-i5/8G-R10 12.1" Panel PC

i5-1240P/8GB ram/PCAP Touch

Product nr: 137187
AFL4-121-ADLP-i5/8G-R10 12.1" Panel PC i5-1240P/8GB ram/PCAP Touch
LCD Display12,1” (4:3)
Resolution1024 (W) x768 (H)
Brightness500 cd/m²
Contrast Ratio700:1
LCD Color16.2M
Viewing Angle (H-V)160°/140°
Backlight MTBF50000 hours
SOCIntel Core i5-1240P (on-board)
Display Output1 x HDMI
MemoryDual-channel 8GB LPDDR4x on-board
TouchscreenMulti-point projected capacitive type
anti-UV / anti-glare coating,support gloves
Touch ControllerEETI 80
Storage1 x M.2 M key 2242 (PCIe Gen4 x4)
1 x M.2 M key 2280 (PCIe Gen4 x4)
EthernetLAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225-LM 2.5GbE controller (support Intel® AMT)
MountingVESA 100, Wall, Stand and Arm
Construction MaterialAluminum front cover and sheet metal rear cover
Enclosure ColorSilver+Black
I/O Ports2 x RS-232 by DB9
2 x RS-232/422/485 by DB9
2 x 2.5GbE LAN
2 x USB 3.2 Gen2
2 x USB 3.2 Gen1
1 x USB 2.0
1 x HDMI output
1 x 12V DC Jack
1 x Power button
1 x Reset button
1 x AT/ATX switch
Power Supply12V DC
Thermal SolutionFanless
Operating Temperature
(with air flow)-10ºC ~ 50ºC
Storage Temperature-20ºC ~ 60ºC
Humidity10% ~ 95%@40ºC, non-condensing
IP LevelIP 64 compliant front panel
Operation VibrationMIL-STD-810G 514.6C-1 (with SSD)
Operation ShockHalf-sine wave shock 5G; 11ms; 100 shocks per axis
Safety and EMCCE, FCC Class A, UKCA
ErPErP 2009/125/EC
Net weight2,38kg
Dimensions(H x W x D) (mm)280.36 x 220.92 x 57.80
