LCD Size	17'' (5:4)
Max Resolution	1280(W) x 1024(H)
Brightness (cd/?)	350
Contrast Ratio	1000 : 1
Display Color	16.7M
Pixel Pitch (mm)	0.26 x 0.26
View Angle (H/V)	170° / 160°
Backlight MTBF(Hrs)	50000
Touchscreen & Controller	Resistive type 5-wire flat touch window/ Penmount 6000 Projected capacitive flat touch window/ EETI EXC7200
I/O Ports	1 x VGA (DB-15) 1 x HDMI 1 x DisplayPort 1.1 1 x USB 2.0 (touch) 1 x RS-232 (touch) [reserved for resistive touch ATO] 1 x Lockable 9-36V DC jack 1 x 9-36V DC terminal block
OSD Button	7-key membrane OSD keypad
Smart OSD	Smart OSD Software
Construction Material	Aluminum front cover and sheet metal rear cover
Mounting	Panel Mount/ Rack Mount/ 100*100 VESA Mount
Color	Black C
Dimension(W x H x D mm)	341.4 x 408.4 x 49.3
Cutout Dimensions (mm)	324 x 391
Weight (Net/Gross)	4.4 / 7.1
Operating Temperature	-20°C ~ 60°C (with air flow)
Storage Temperature	-20°C ~ 70°C
Humidity	10% to 95% (non-condensing)
IP Level	IP 65 compliant front panel
Safety and EMC	CE & FCC certified
Power Adapter	60W 12V output with lockable jack (63040-010060-120-RS , optional)
Power Input	9V~36V DC

Number of articles found:

MONITORS

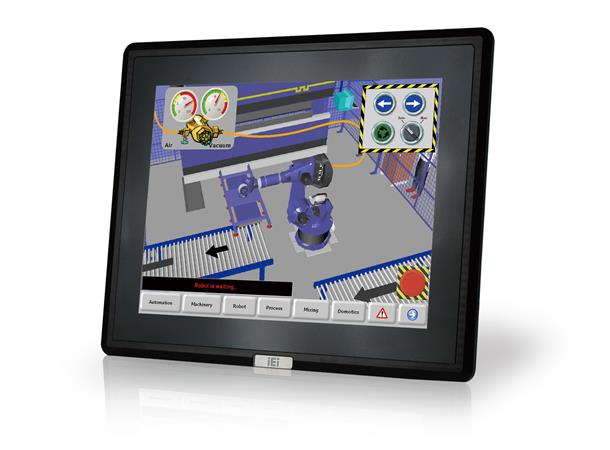

DM-F17A/R-R30 17" Touch monitor

IEI/VGA,HDMI,DP/9-36VDC/Res.Touch(USB)

Product nr: 127010

LCD Size	17'' (5:4)
Max Resolution	1280(W) x 1024(H)
Brightness (cd/?)	350
Contrast Ratio	1000 : 1
Display Color	16.7M
Pixel Pitch (mm)	0.26 x 0.26
View Angle (H/V)	170° / 160°
Backlight MTBF(Hrs)	50000
Touchscreen & Controller	Resistive type 5-wire flat touch window/ Penmount 6000 Projected capacitive flat touch window/ EETI EXC7200
I/O Ports	1 x VGA (DB-15) 1 x HDMI 1 x DisplayPort 1.1 1 x USB 2.0 (touch) 1 x RS-232 (touch) [reserved for resistive touch ATO] 1 x Lockable 9-36V DC jack 1 x 9-36V DC terminal block
OSD Button	7-key membrane OSD keypad
Smart OSD	Smart OSD Software
Construction Material	Aluminum front cover and sheet metal rear cover
Mounting	Panel Mount/ Rack Mount/ 100*100 VESA Mount
Color	Black C
Dimension(W x H x D mm)	341.4 x 408.4 x 49.3
Cutout Dimensions (mm)	324 x 391
Weight (Net/Gross)	4.4 / 7.1
Operating Temperature	-20°C ~ 60°C (with air flow)
Storage Temperature	-20°C ~ 70°C
Humidity	10% to 95% (non-condensing)
IP Level	IP 65 compliant front panel
Safety and EMC	CE & FCC certified
Power Adapter	60W 12V output with lockable jack (63040-010060-120-RS , optional)
Power Input	9V~36V DC
