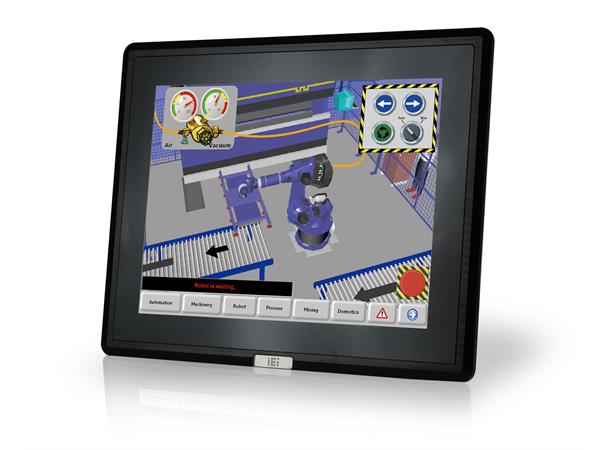

DM-F15A/PC-R20 15" Touch monitor


Product nr: 122105
Spec ItemDescription
DisplayLCD Size15”(4:3)
Max Resolution1024 (W) x 768 (H)
Contrast Ratio800:1
Backlight MTBF(hrs)70000
I/O InterfaceI/O Ports and Switches1 x VGA (DB-15)
1 x HDMI
1 x DisplayPort1.1
1 x USB 2.0 (touch)
1 x RS-232 (reserved for resistive touch ATO)
1 x Lockable 9V-36V DC jack
1 x 9V-36V terminal block
PowerPower adapter9V~36V DC
EnvironmentOperating Temperature-20°C ~ 60°C
Humidity10% to 95% (non-condensing)
Storage Temperature-20°C ~ 70°C
IP LevelIP 65 compliant front panel
Physical CharacteristicsDimensions (LxWxH) (mm)303 x 378.5 x 43.2
Cutout Dimensions285.6 x 361.1
WeightWeight3.5 / 5.5
LCDLCD Color16.2M
Pixel Pitch (mm)0.29 x 0.29
Viewing Angle (H-V)160° / 150°
TouchTouch Screen2-point projected capacitive touch window/ EETI EXC7200
Touch Controller5-wire resistive single touch window/ Penmount 6000
