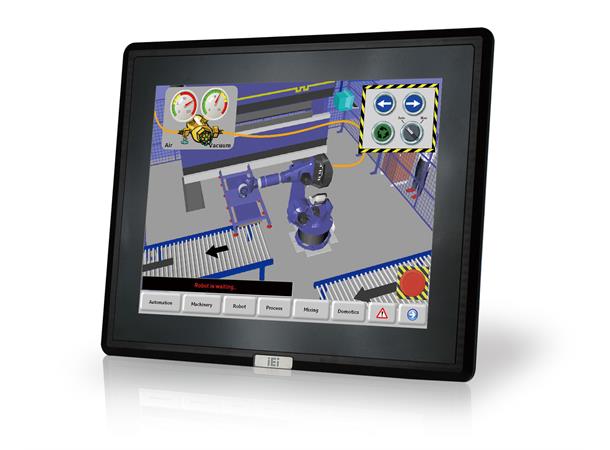

DM-F19A/R-R10 19" Touch monitorIEI/VGA,DVI,DP/9-36VDC/Res.Touch(USB)

Spec Item		Description
Display	LCD Size	19”(4:3)
	Brightness(cd/m2)	350
	Max Resolution	1280 (W) x 1024 (H)
	Contrast Ratio	1000:1
	Backlight MTBF(hrs)	50000
I/O Interface	I/O Ports and Switches	1 x VGA (DB-15) 1 x DVI (F19A only) 1 x HDMI(F17A only) 1 x DisplayPort1.1 1 x USB 2.0 (touch) 1 x RS-232 (reserved for resistive touch ATO) 1 x Lockable 12V DC jack 1 x 9V-36V terminal block
Power	Power adapter	9V~36V DC
Environment	Operating Temperature	-20°C ~ 60°C
	Humidity	10% to 95% (non-condensing)
	Storage Temperature	-20°C ~ 70°C
	IP Level	IP 65 compliant front panel
Physical Characteristics	Dimensions (LxWxH) (mm)	372.4 x 447.4 x 49.57
Physical Characteristics	Cutout Dimensions	430 x 355
Weight	Weight	5.4 /8.4
LCD	LCD Color	16.7M
	Pixel Pitch (mm)	0.294 x 0.294
	Viewing Angle (H-V)	170° / 160°
Touch	Touch Screen	2-point projected capacitive touch window/ EETI EXC7200
Touch	Touch Controller	5-wire resistive single touch window/ Penmount 6000

DM-F19A/R-R10 19" Touch monitor IEI/VGA,DVI,DP/9-36VDC/Res.Touch(USB)

Accessories

Alternatives

Articles

Number of articles found:

MONITORS

DM-F19A/R-R10 19" Touch monitor

IEI/VGA,DVI,DP/9-36VDC/Res.Touch(USB)

Product nr: 120577

DM-F19A/R-R10 19" Touch monitor IEI/VGA,DVI,DP/9-36VDC/Res.Touch(USB)

Description
Support

Spec Item		Description
Display	LCD Size	19”(4:3)
	Brightness(cd/m2)	350
	Max Resolution	1280 (W) x 1024 (H)
	Contrast Ratio	1000:1
	Backlight MTBF(hrs)	50000
I/O Interface	I/O Ports and Switches	1 x VGA (DB-15) 1 x DVI (F19A only) 1 x HDMI(F17A only) 1 x DisplayPort1.1 1 x USB 2.0 (touch) 1 x RS-232 (reserved for resistive touch ATO) 1 x Lockable 12V DC jack 1 x 9V-36V terminal block
Power	Power adapter	9V~36V DC
Environment	Operating Temperature	-20°C ~ 60°C
	Humidity	10% to 95% (non-condensing)
	Storage Temperature	-20°C ~ 70°C
	IP Level	IP 65 compliant front panel
Physical Characteristics	Dimensions (LxWxH) (mm)	372.4 x 447.4 x 49.57
Physical Characteristics	Cutout Dimensions	430 x 355
Weight	Weight	5.4 /8.4
LCD	LCD Color	16.7M
	Pixel Pitch (mm)	0.294 x 0.294
	Viewing Angle (H-V)	170° / 160°
Touch	Touch Screen	2-point projected capacitive touch window/ EETI EXC7200
Touch	Touch Controller	5-wire resistive single touch window/ Penmount 6000
