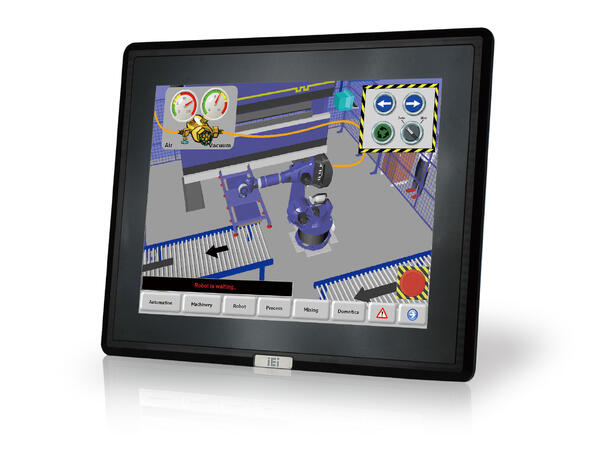

DM-F15A

Introduction: The DM-F15A is a rugged 15-inch industrial monitor designed for harsh environments, featuring an IP65-rated aluminum front bezel, wide temperature support, and flexible video input options. It offers both resistive and projected capacitive touch options, making it suitable for factory automation, control rooms, and industrial HMI applications.

15" Industrial Monitor with IP65 Front Panel and Multi-Touch Options

Key Features

• Display: 15" XGA (1024 x 768), 450 cd/m² brightness, 800:1 contrast ratio
• Touch Options: 5-wire resistive or 2-point projected capacitive
• Video Inputs: VGA, HDMI™, DisplayPort 1.1
• Touch Interface: USB 2.0
• Durability: IP65-compliant aluminum front bezel
• Power Input: 9V–36V DC (lockable jack and terminal block)
• Viewing Angle: 160° (H) / 150° (V)
• Backlight MTBF: 70,000 hours
• Operating Temperature: -20°C to +60°C
• Storage Temperature: -20°C to +70°C
• Humidity: 10% to 95% RH, non-condensing

Specifications

• Dimensions: 303 x 378.5 x 43.2 mm
• Cutout Dimensions: 285.6 x 361.1 mm
• Weight: 3.5 / 5.5 kg (varies by touch type)
• Touch Controller: PenMount 6000 (resistive), EETI EXC7200 (capacitive)
• Included Accessories: Touch pen, USB cable, VGA cable
