LCD Size	21.5'' (16:9)
Max Resolution	1920(W) x 1080(H)
Brightness (cd/?)	250
Contrast Ratio	1000 : 1
Display Color	16.7M
Pixel Pitch (mm)	0.25 x 0.25
View Angle (H/V)	170° / 160°
Backlight MTBF(Hrs)	30000
Touchscreen & Controller	Projected capacitive flat touch window/ EETI EXC7200
I/O Ports	1 x VGA (DB-15) 1 x HDMI 1 x DisplayPort 1.1 1 x USB 2.0 (touch) 1 x RS-232 (touch) [reserved for resistive touch ATO] 1 x Lockable 9-36V DC jack 1 x 9-36V DC terminal block
OSD Button	7-key membrane OSD keypad
Smart OSD	Smart OSD Software
Construction Material	Aluminum front cover and sheet metal rear cover
Mounting	Panel Mount/ 100*100 VESA Mount
Dimension(W x H x D mm)	350.4 x 550.4 x 49.1
Cutout Dimensions (mm)	340 x 532
Weight (Net/Gross)	6.3 / 9.6
Operating Temperature	-10°C ~ 50°C
Storage Temperature	-20°C ~ 60°C
Humidity	10% to 95% (non-condensing)
IP Level	IP 65 compliant front panel
Safety and EMC	CE & FCC certified
Power Adapter	63040-010060-040-RS 12V 60W with lock (ATO by option)
Power Input	9V~36V DC

Ordering Information

Number of articles found:

MONITORS

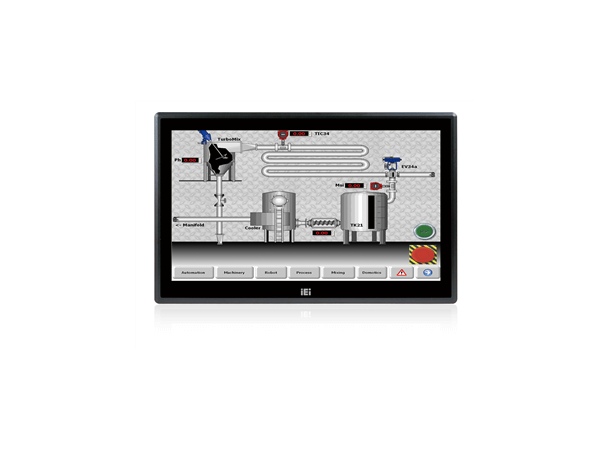

DM-F22A/PC-R21 21,5" Touch monitor

IEI/VGA,HDMI,DP/9-36VDC/PCTouch(USB)

Product nr: 127157

LCD Size	21.5'' (16:9)
Max Resolution	1920(W) x 1080(H)
Brightness (cd/?)	250
Contrast Ratio	1000 : 1
Display Color	16.7M
Pixel Pitch (mm)	0.25 x 0.25
View Angle (H/V)	170° / 160°
Backlight MTBF(Hrs)	30000
Touchscreen & Controller	Projected capacitive flat touch window/ EETI EXC7200
I/O Ports	1 x VGA (DB-15) 1 x HDMI 1 x DisplayPort 1.1 1 x USB 2.0 (touch) 1 x RS-232 (touch) [reserved for resistive touch ATO] 1 x Lockable 9-36V DC jack 1 x 9-36V DC terminal block
OSD Button	7-key membrane OSD keypad
Smart OSD	Smart OSD Software
Construction Material	Aluminum front cover and sheet metal rear cover
Mounting	Panel Mount/ 100*100 VESA Mount
Dimension(W x H x D mm)	350.4 x 550.4 x 49.1
Cutout Dimensions (mm)	340 x 532
Weight (Net/Gross)	6.3 / 9.6
Operating Temperature	-10°C ~ 50°C
Storage Temperature	-20°C ~ 60°C
Humidity	10% to 95% (non-condensing)
IP Level	IP 65 compliant front panel
Safety and EMC	CE & FCC certified
Power Adapter	63040-010060-040-RS 12V 60W with lock (ATO by option)
Power Input	9V~36V DC
