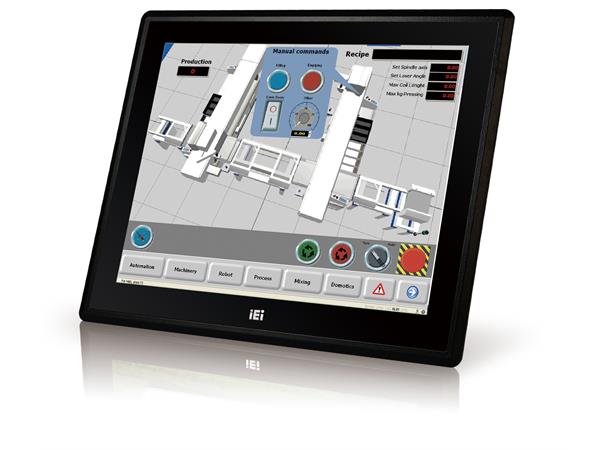

PPC-F19B-BTi-J1/2G/R-R12 19" Panel PC
IEI/Celeron J1900/2GB/Res.Touch
Spec Item
Description
Communication
Wireless
802.11 b/g/n (optional)
Environment
Humidity
10% to 95% (non-condensing)
IP Level
IP 65 compliant front panel
Operating Temperature
-10°C~50°C (14°F~122°F)
Safety & EMC
CE & FCC Class A certified
Storage Temperature
-20°C~60°C (-4°F~140°F)
I/O Interface
Expansion
1 x Full-size PCIe Mini slot ( mSATA/PCIe/USB signal)
1 x Full-size/half-size PCIe Mini slot (PCIe/USB signal)
FDD Bay
1 x 2.5” HDD/SSD drive bay
I/O Ports and Switches
2 x RJ-45 LAN port
2 x USB 3.0
2 x USB 2.0
1 x HDMI
2 x RS-232
1 x RS-232/422/485
1 x VGA
1 x 9 V~36 V DC jack (4-pin)
1 x 9 V~36 V DC terminal block
1 x Line-out
1 x Power switch
RAM
2 x 204-pin DDR3L SO-DIMM slot (max. 8GB), pre-installed with 2GB
LCD
Backlight MTBF
50000 hrs
Brightness (cd/m2)
350
Contrast Ratio
1000 : 1
LCD Color
16.7M
Pixel Pitch (mm)
0.294 x 0.294
Resolution
1280 (W) x 1024 (H)
Size
19” (5:4)
Viewing Angle (H-V)
170º / 160º
Physical Characteristics
Color
Black C
Construction Front Panel
Aluminum front panel and sheet metal rear cover
Dimensions (LxWxH) (mm)
372.4 x 447.4 x 52.87
Mounting
Panel mount, rack mount, VESA 100x100
Net Weight
6.5 kg
Power
Power adapter
P/N: 63040-010060-110-RS
60W Power Adapter
Input: 90 - 264V AC, 50/60Hz
Output: 12V DC
Power consumption
12V@2.3A (Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory) 12V@3.58A (Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory)
Power Requirement
9 V~36 V DC
System
CPU
Intel® Celeron® processor J1900 (2M cache, up to 2.42 GHz)
Drive Bays
1 x 2.5” HDD/SSD drive bay
Touch
Touch Controller
3H,6H
Touch Screen
5-wire resistive type single touch window (Penmount 9000)
2-point projected capacitive touch window (EETI EXC7200)
I/O Interface
I/O Interface
1 x Audio(Line-out)
2 x Power In(9 V~36 V DC jack (4-pin) / 9 V~36 V DC terminal block)
2 x LAN(Gbe(RJ-45))
1 x VGA
1 x HDMI
2 x USB 3.0
2 x USB 2.0
1 x RS-422/485
2 x RS-232
1 x Power Switch
