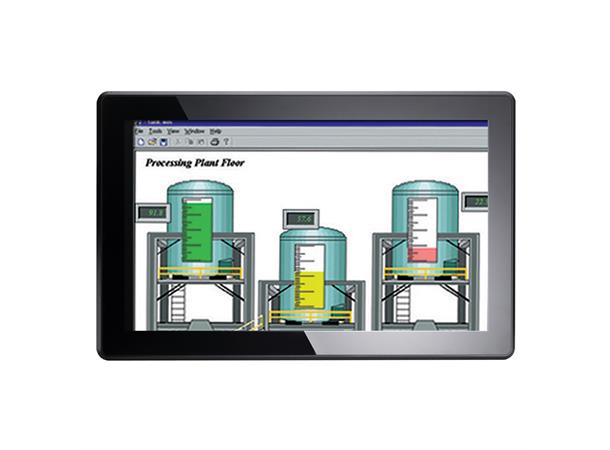

P6217WPC-AC-U-EU 21,5" Touch monitor

Axiomtek/VGA,DVI,HDMI/PCTouch/AC

Product nr: 121291
69885
Front Bezel
  • NEMA 4/12 (IP65)-compliant, flat front bezel
LCD Panel
  • 21.5" TFT FHD LCD
Max Colors
  • 16.7M
Active Area (mm)
  • 476.64 x 268.11
Max. Resolution
  • 1920 x 1080
Display Mode
  • VGA 640 x 350 (70Hz)
  • VGA 640 x 480 (60/72/75Hz)
  • VGA 720 x 400 (70Hz)
  • SVGA 800 x 600 (60/72/75Hz)
  • XGA 1024 x 768 (60/72/75Hz)
  • WXGA 1366 x 768 (60Hz)
  • FHD 1920 x 1080 (60Hz)
Pixel Pitch (mm)
  • 0.24 × 0.24
Backlight MTBF (hrs)
  • 50,000 hrs
Viewing Angle (H/V)
  • 178°/178°
Response Time
  • 18 ms
Contrast Ratio
  • 3000 (TYP.)
LCD Brightness (cd/m²)
  • 250 nits
Display Control
  • OSD (on screen display)
I/O Interface
  • 1 x USB for touchscreen version
  • 1 x Audio (Line-in)
  • 1 x VGA input
  • 1 x HDMI
  • 1 x DVI
  • 1 x Screw type or phoenix type power input
Touchscreen
  • Multi-touch projective capacitive (optional)
Power Adapter
  • Screw-type external AC/DC power adapter
Power Comsumption
  • TBD
Operating Temperature
  • 0°C ~ +45°C (+32°F ~ +113°F)
Dimensions
(W x D x H)
  • 547.59 x 339.05 x 53 mm (21.56" x 13.34" x 2.09")
Weight (net/gross)
  • TBD
Mounting
  • Panel mount
  • Wall mount
  • VESA FPMPMI mount
Certification
  • CE
