GOT318A-ELK-WCD

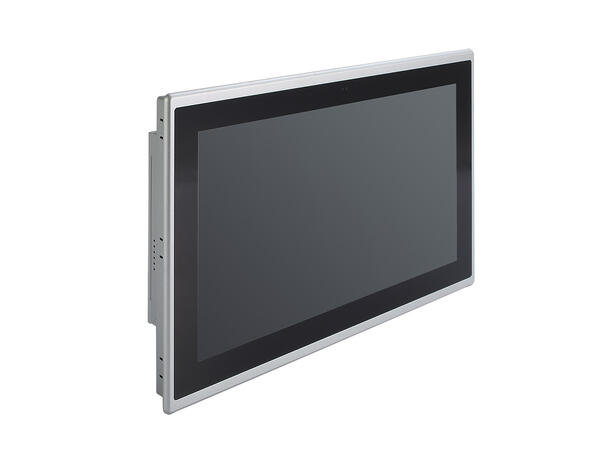

The Axiomtek GOT318A-ELK-WCD is an 18.5? full-HD (1920×1080) fanless multi-touch panel computer built for industrial environments. It is powered by an Intel® Celeron® J6412 (Elkhart Lake) SoC, supports wide-input DC power (9-36 V), and features a rugged IP65-rated front bezel. With its widescreen display, multiple mounting options (panel, VESA, desktop, wall), and rich I/O, it is ideal for human-machine interfaces, automation systems, kiosks, and industrial visualization applications.

Key Features

• Display: 18.5? FHD (1920×1080) TFT LCD, projected-capacitive multi-touch, approx. 350 nits brightness
• Processor: Intel® Celeron® J6412 (Elkhart Lake) SoC
• Memory: 1 × DDR4 SO-DIMM (260-pin, up to 32 GB)
• Storage: 1 × mSATA slot + 1 × removable 2.5? SATA SSD bay (supports 7 mm & 9.5 mm drives)
• Ethernet: 1 × RJ-45 2.5 GbE + 1 × RJ-45 1 GbE
• USB Ports: 4 × USB 3.2 Gen2 (Type-A)
• Serial Port (COM): 1 × RS-232/422/485 (plus flexible I/O window defaulting to 2 × RS-232)
• Video Outputs: 1 × HDMI + 1 × VGA
• Power Input: 9-36 V DC via terminal-block connector
• Front Bezel & Mounting Options: IP65 rated front bezel; supports panel mount, VESA mount, desktop stand, and wall mount
• Operating Temperature: -10 °C to +50 °C
• Dimensions: 475 × 59.4 × 302 mm
• Weight: Approx. 5.91 kg (net)
