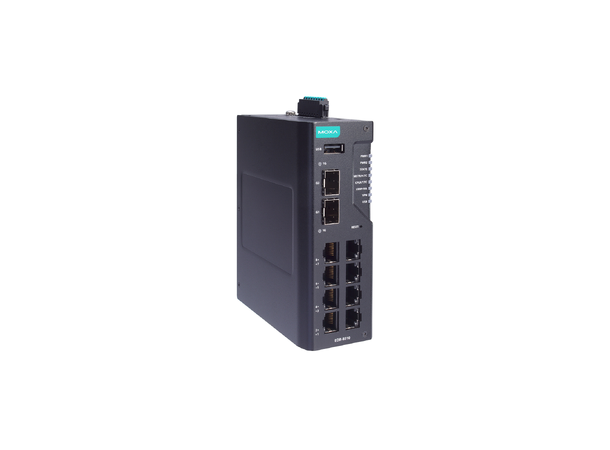

Moxa EDR-8010-VPN-2GSFP-T
The Moxa EDR-8010-VPN-2GSFP-T is an industrial-grade secure router that combines multi-port routing, switching, firewall/NAT and VPN functionalities in one rugged device. With eight 10/100BaseT(X) copper ports, two 1000Base SFP slots, dual redundant 12/24/48 V DC power inputs and an extended –40 °C to 75 °C operating temperature range, it is engineered for demanding automation, energy, transportation and industrial applications.
Key Features
- Ethernet Interfaces: 8 × 10/100BaseT(X) RJ45 + 2 × 1000Base SFP slots
- Security Functions: Stateful firewall, NAT (1-to-1, N-to-1, port forwarding), IPsec VPN, L2TP (server), PPTP (client)
- Deep Packet Inspection (DPI): Supports industrial protocols such as Modbus TCP/UDP, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, Siemens S7
- Routing & Redundancy: Supports VRRP, RSTP, Turbo Ring v2, Turbo Chain, VLAN, IGMP; up to 4 K routing rules
- Power Input: Dual redundant 12/24/48 V DC (9.6-60 V DC) via removable terminal block with reverse-polarity protection
- Operating Temperature: –40 °C to 75 °C (wide-temperature “-T” model)
- Housing & Mounting: Metal enclosure, IP40 rated, DIN-rail or wall mountable (45 × 135 × 105 mm; ~520 g)
- Certifications & Standards: IEC 62368-1, EN 55032/35, IEC 61000 series EMC/EMS, DNV, IEC 62443-4-2 compliant
