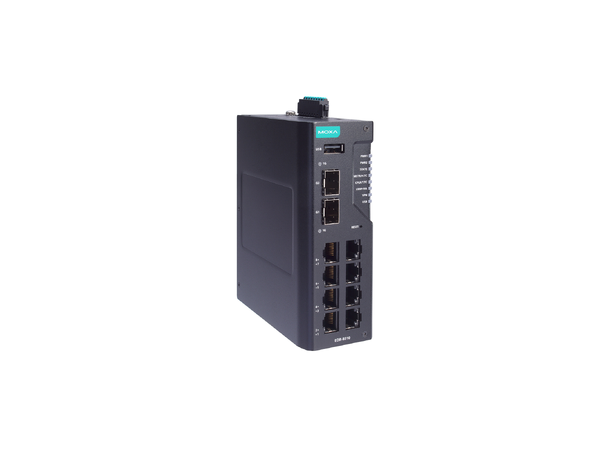

Moxa EDR-8010-2GSFP-CT
The Moxa EDR-8010-2GSFP-CT is an industrial-grade, multi-port secure router featuring 8 × 10/100BaseT(X) copper ports and 2 × 1000Base SFP slots. It integrates firewall, NAT, and advanced OT-security features in one rugged unit designed for industrial networks. Supporting a wide input voltage range (12/24/48 VDC) and operating in -10 to 60 °C environments with conformal-coated protection, it is perfectly suited for harsh automation, power, oil & gas, marine and transportation systems.
Key Features
- Ethernet Interfaces: 8 × 10/100BaseT(X) (RJ45) + 2 × 1000Base SFP slots
- Security Functions: Firewall, NAT (1-to-1, N-to-1, port forwarding), Deep Packet Inspection (DPI) for OT protocols
- VPN / Remote Access: IPsec, L2TP server, PPTP client (depending on license/configuration)
- Routing / Switch Functions: VRRP, RSTP, Turbo Ring v2, VLAN, IGMP, static routing, up to 4 K routing rules
- Power Input: Dual redundant 12/24/48 VDC inputs (9.6–60 VDC support), removable terminal block
- Operating Temperature: –10 to 60 °C (standard model) with conformal coating
- Housing & Mounting: Metal enclosure, IP40 rated, DIN-rail mountable (45 × 135 × 105 mm, ~520 g)
- Certifications & Standards: IEC 62368-1, IEC 61000 series EMC/EMS, EN 55032/35, DNV maritime and other industrial-grade certifications
