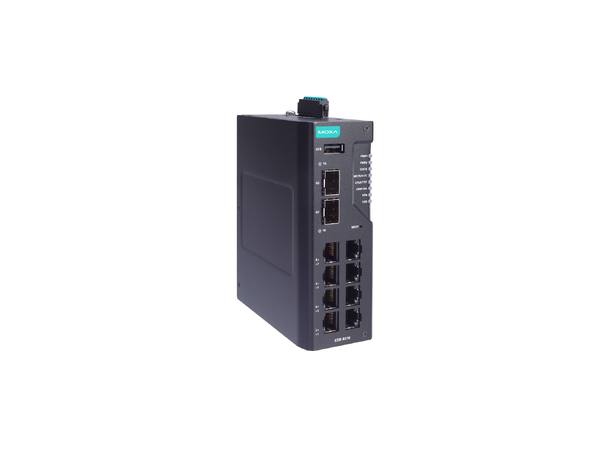

Moxa EDR-8010-VPN-2GSFP-CT-T
The Moxa EDR-8010-VPN-2GSFP-CT-T is an industrial-grade secure router that integrates firewall, NAT, VPN, and Layer 2 switching capabilities in a single rugged device. Featuring eight 10/100BaseT(X) copper ports and two 1000BaseSFP slots, it is designed for mission-critical applications requiring both high network security and reliability. With conformal coating, dual redundant power inputs, and a wide operating temperature range, it ensures dependable performance in harsh industrial environments.
Key Features
- Ethernet Interfaces: 8 × 10/100BaseT(X) RJ45 + 2 × 1000BaseSFP slots
- Security Functions: Stateful firewall, NAT (1-to-1, N-to-1, port forwarding), IPsec VPN, L2TP (server), PPTP (client)
- Deep Packet Inspection (DPI): Supports Modbus TCP/UDP, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, Siemens S7
- Routing & Redundancy: Supports VRRP, RSTP, Turbo Ring v2, Turbo Chain, VLAN, IGMP, and up to 4K routing rules
- Power Input: Dual redundant 12/24/48 VDC inputs (9.6–60 VDC), removable terminal block, reverse polarity protection
- Operating Temperature: –40 to 75 °C (wide-temperature, conformal-coated model)
- Housing & Mounting: Metal enclosure, IP40 rated, DIN-rail or wall mountable (45 × 135 × 105 mm, approx. 520 g)
- Certifications & Standards: IEC 62368-1, EN 55032/35, IEC 61000 series EMC/EMS, DNV, IEC 62443-4-2 compliant
