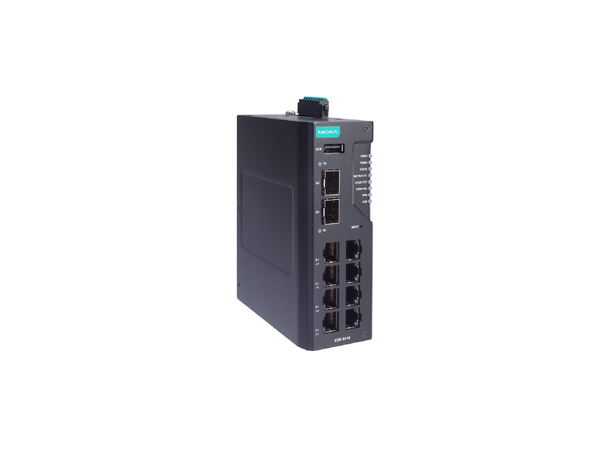

Moxa EDR-8010-VPN-2GSFP-CT
The Moxa EDR-8010-VPN-2GSFP-CT is an industrial-grade, multi-port secure router featuring 8 × 10/100BaseT(X) copper ports and 2 × 1000Base SFP slots. Designed for demanding automation and infrastructure networks, it integrates firewall/NAT, VPN, and switching capabilities in a rugged, conformal-coated enclosure with support for 12/24/48 VDC input and an operating temperature range of –10 °C to 60 °C.
Key Features
- Ethernet Interfaces: 8 × 10/100BaseT(X) RJ45 + 2 × 1000Base SFP slots
- Security Functions: Built-in firewall, NAT (1-to-1, N-to-1, port forwarding), and VPN (IPsec, L2TP server, PPTP client)
- Deep Packet Inspection (DPI): Supports industrial protocols such as Modbus TCP/UDP, DNP3, IEC 60870-5-104, IEC 61850 MMS, EtherNet/IP, and Siemens S7
- Routing / Switch Features: VRRP, RSTP, Turbo Ring v2, VLAN, IGMP, up to 4 K routing rules
- Power Input: Dual redundant 12/24/48 VDC inputs (9.6–60 VDC), removable terminal block, reverse-polarity protection
- Operating Temperature: –10 °C to 60 °C (conformal-coated model)
- Housing & Mounting: Metal enclosure, IP40 rated, DIN-rail mountable (dimensions: 45 × 135 × 105 mm; weight ~ 520 g)
- Certifications & Standards: IEC 62368-1, EN 55032/35, IEC 61000 series EMC/EMS, DNV maritime certifications
