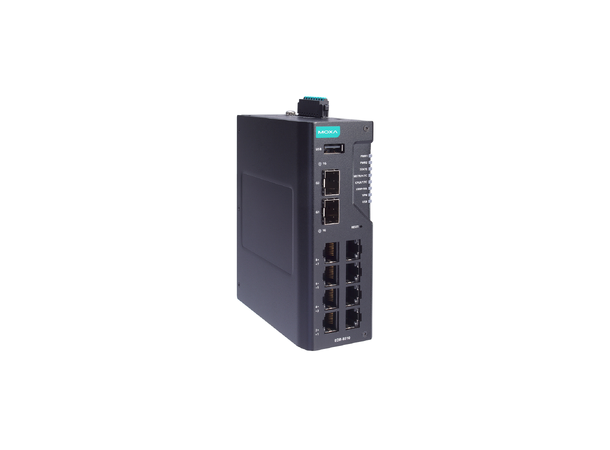

Moxa EDR-8010-2GSFP-CT-T
The Moxa EDR-8010-2GSFP-CT-T is an industrial-grade, multi-port secure router featuring 8 × 10/100BaseT(X) copper ports and 2 × 1000Base SFP slots. It integrates firewall, NAT, and advanced OT-security features in one rugged unit designed for industrial networks. With dual 12/24/48 VDC power inputs, wide operating temperature range from –40 °C to 75 °C, and conformal coating, it is perfectly suited for harsh automation, power, oil & gas, marine and transportation systems.
Key Features
- Ethernet Interfaces: 8 × 10/100BaseT(X) (RJ45) + 2 × 1000Base SFP slots
- Security Functions: Integrated firewall, NAT (1-to-1, N-to-1, port forwarding), deep packet inspection (DPI) for OT protocols
- VPN / Remote Access: IPsec, L2TP (server), PPTP (client) available via license
- Routing / Switch Features: VRRP, RSTP, Turbo Ring v2, VLAN, IGMP, up to 4K routing rules
- Power Input: Dual redundant 12/24/48 VDC inputs (9.6–60 VDC support), removable terminal block
- Operating Temperature: –40 °C to 75 °C
- Housing & Mounting: Metal enclosure, IP40 rated, DIN-rail mountable (45 × 135 × 105 mm, ~520 g)
- Certifications & Standards: IEC 62368-1, EN 55032/35, IEC 61000 series EMC/EMS, DNV maritime certification
