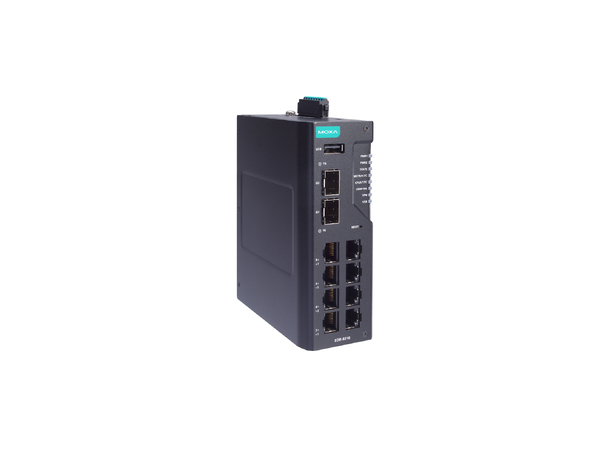

Moxa EDR-8010-2GSFP-T
The Moxa EDR-8010-2GSFP-T is an industrial-grade, multi-port secure router designed for rugged and demanding environments. It features eight 10/100BaseT(X) copper ports and two 1000BaseSFP ports, integrating firewall/NAT, VPN, and managed Layer 2 switch functionality. With support for a wide input voltage range (12/24/48 VDC) and an extended operating temperature range (–40 °C to 75 °C), it delivers reliable performance in critical automation, energy, transportation, and industrial applications.
Key Features
- Ethernet Interfaces: 8 × 10/100BaseT(X) RJ45 + 2 × 1000BaseSFP slots
- Security Functions: Integrated firewall, NAT (1-to-1, N-to-1, port forwarding), Deep Packet Inspection for OT protocols
- VPN / Remote Access: IPsec, L2TP (server), PPTP (client) – depending on configuration
- Routing & Redundancy: VRRP, RSTP, Turbo Ring v2, VLAN, IGMP for network resilience
- Power Input: Dual redundant 12/24/48 VDC (9.6–60 VDC) via removable terminal block
- Operating Temperature: –40 °C to 75 °C for the wide-temperature model (“-T”)
- Housing & Mounting: Metal enclosure, IP40 rated, DIN-rail or wall mountable (45 × 135 × 105 mm, ~520 g)
- Certifications & Standards: IEC 62368-1, EN 55032/35, IEC 61000 series, IEC 62443-4-2 (for OT security)
