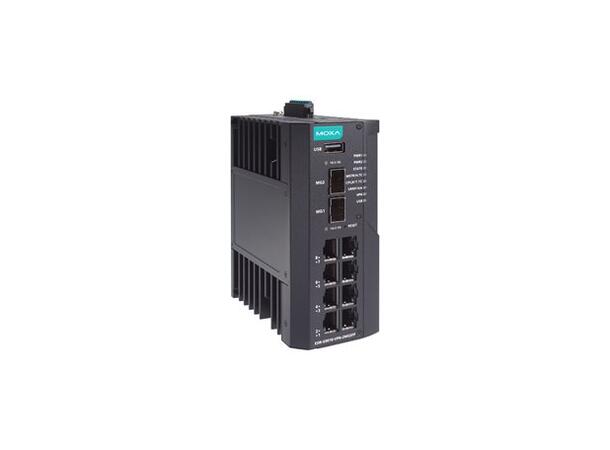

Moxa EDR-G9010-VPN-2MGSFP-HV
The Moxa EDR-G9010-VPN-2MGSFP-HV is an industrial-grade secure router combining multi-port Gigabit Ethernet connectivity, firewall/NAT, VPN and managed switch functionality in one rugged platform. It supports eight Gigabit copper ports plus two Gigabit SFP slots, and features high-voltage power input (120/240?V DC/AC) for demanding infrastructure environments. Operating from –10?°C to 60?°C, it’s suited for critical applications in power, transportation, oil & gas and automation networks. :contentReference[oaicite:1]{index=1}
Key Features
- Ethernet Interfaces: 8 × 10/100/1000BaseT(X) RJ45 + 2 × 1000BaseSFP slots :contentReference[oaicite:2]{index=2}
- Security Functions: Stateful firewall, NAT (1-to-1, N-to-1, port forwarding), IPsec VPN, L2TP (server), PPTP (client) :contentReference[oaicite:3]{index=3}
- Routing Performance: Up to 2?Gbps throughput / 350K packets per second; supports up to 4?K routing rules & up to 400?K concurrent connections :contentReference[oaicite:4]{index=4}
- Power Input: Dual redundant inputs: 120/240?V DC/AC (88–300?V DC / 90–264?V AC) with removable terminal block and reverse polarity protection :contentReference[oaicite:5]{index=5}
- Operating Temperature: –10?°C to 60?°C (standard model) :contentReference[oaicite:6]{index=6}
- Housing & Mounting: Metal enclosure, DIN-rail mountable, suitable for industrial environments :contentReference[oaicite:7]{index=7}
- Certifications & Standards: Compliant with IEC?62443-4-2, IACS?UR E27, IEC?61162-460, EN?55032/35, IEC?61000 series :contentReference[oaicite:8]{index=8}
