Moxa?EDR-G9010-VPN-2MGSFP-CT-T

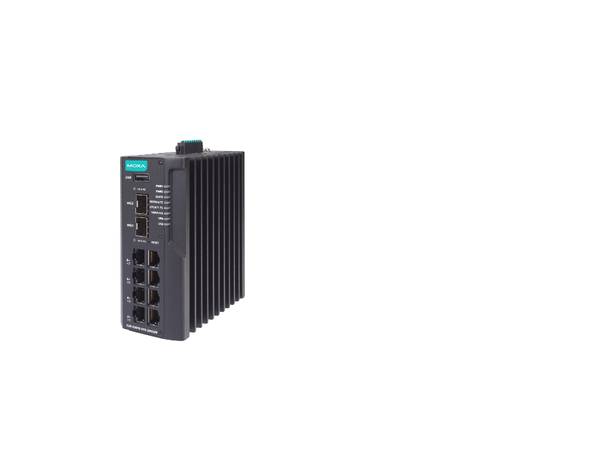

The Moxa?EDR-G9010-VPN-2MGSFP-CT-T is an industrial-grade secure router integrating firewall, NAT, VPN, and managed Layer?2 switching in a single rugged platform. Featuring 8?×?10/100/1000BaseT(X) copper ports and 2?×?1000/2500Base?SFP slots, dual redundant 12/24/48?V?DC input, conformal coating, and wide-temperature operation (–40?°C to 75?°C), it is designed for use in challenging automation, infrastructure, power, transportation and marine environments.
Key Features
- Ethernet Interfaces: 8?×?10/100/1000BaseT(X) RJ45 + 2?×?1000/2500Base?SFP slots
- Security Functions: Stateful firewall, NAT (1-to-1, N-to-1, port forwarding), IPsec VPN, L2TP server, PPTP client
- Deep Packet Inspection (DPI): Supports industrial/OT protocols such as Modbus?TCP/UDP, DNP3, IEC?60870-5-104, IEC?61850?MMS, EtherNet/IP, Siemens?S7
- Routing & Redundancy: Supports VRRP, RSTP, Turbo Ring?v2 / Turbo Chain, VLAN, IGMP; up to 4?K routing rules, up to 400?K concurrent connections
- Power Input: Dual redundant 12/24/48?V?DC inputs (9.6?–?60?V?DC), removable terminal block, reverse-polarity protection
- Operating Temperature: –40?°C to 75?°C (wide-temperature “-T” model)
- Housing & Mounting: Metal enclosure, IP40 rated, DIN-rail or wall mountable (58?×?135?×?105?mm; approx. 1,030?g)
- Certifications & Standards: IEC?62443-4-2 compliant, IACS UR?E27, IEC?61162-460, EN?55032/35, IEC?61000 series EMC/EMS
