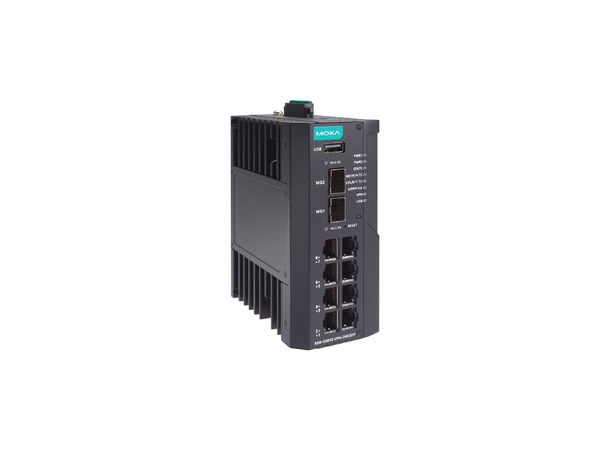

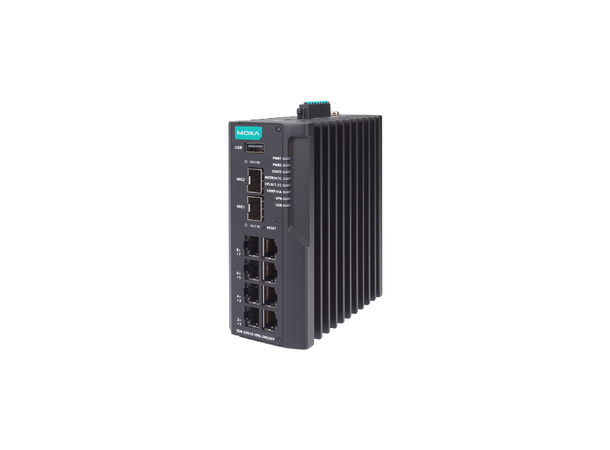

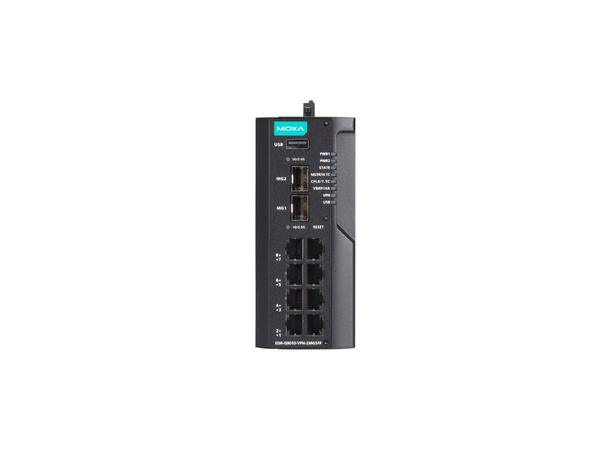

Moxa EDR-G9010-VPN-2MGSFP-CT
The Moxa EDR-G9010-VPN-2MGSFP-CT is an industrial-grade secure router with conformal coating for enhanced environmental resilience. It combines routing, firewall/NAT, VPN and managed switch features in a rugged package. With 8 gigabit copper ports, 2 gigabit SFP slots, and support for dual 12/24/48 VDC power input, it is built for industrial networks operating in harsh conditions.
Key Features
- Ethernet Interfaces: 8 × 10/100/1000BaseT(RJ45) + 2 × 1000BaseSFP
- Security Functions: Stateful firewall, NAT (1-to-1, N-to-1, port forwarding), IPsec VPN, L2TP server, PPTP client
- Deep Packet Inspection (DPI): Supports industrial protocols (Modbus TCP/UDP, IEC 60870-5-104, EtherNet/IP, Siemens S7, etc.)
- Routing & Redundancy: VRRP, RSTP, Turbo Ring v2, VLAN, IGMP, up to 4 K routing entries
- Power Input: Dual redundant 12/24/48 VDC (range 9.6–60 VDC), removable terminal block, reverse polarity protection
- Operating Temperature: –10 °C to 60 °C (typical CT models)
- Housing & Mounting: Metal enclosure, IP40 rated, DIN-rail or wall mounting (approx. 58 × 135 × 105 mm; ~1 030 g)
- Certifications & Standards: IEC 62443-4-2, IACS UR E27, marine cybersecurity standards
