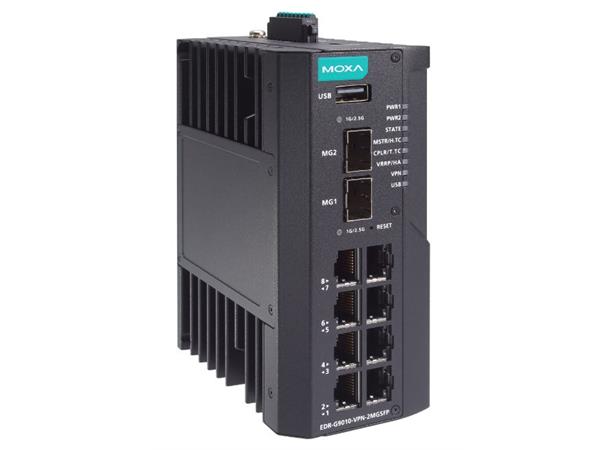

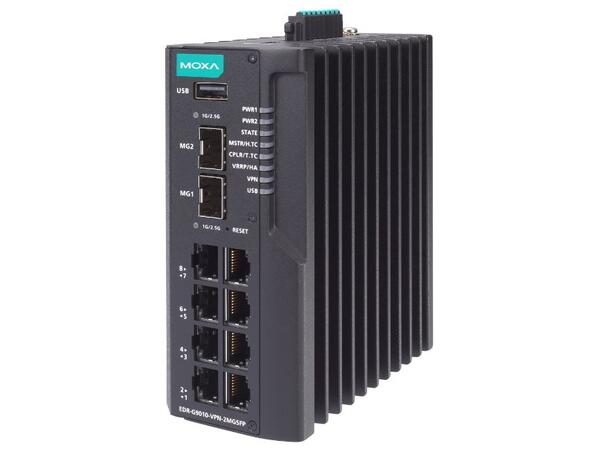

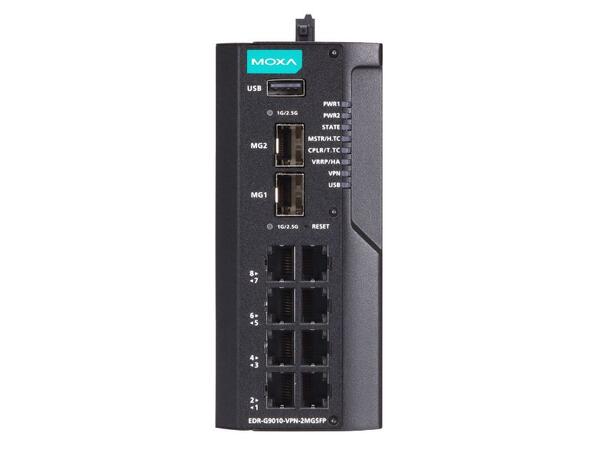

Moxa EDR-G9010-VPN-2MGSFP
The Moxa EDR-G9010-VPN-2MGSFP is an industrial-grade secure router that combines routing, firewall/NAT, VPN and managed Layer 2 switching in one device. It features 8 GbE copper ports plus 2 GbE SFP slots, supports dual-input 12/24/48 VDC power, and is built for demanding environments (-10 °C to 60 °C standard).
Key Features
- Ethernet Interfaces: 8 × 10/100/1000BaseT(X) RJ45 + 2 × 1000/2500 BaseSFP slots
- Firewall/NAT & VPN: Stateful inspection, NAT (1-to-1, N-to-1), IPsec VPN, L2TP (server), PPTP (client)
- Deep Packet Inspection (DPI): Supports industrial protocols including DNP3, EtherNet/IP, IEC 61850 MMS, Modbus TCP/UDP, Siemens S7 Comm
- Performance: Up to 2 Gbps routing throughput, 350 K pps packet rate, up to 4 K routing rules, up to 400 K concurrent connections
- Power Input: Dual redundant 12/24/48 VDC (9.6 – 60 VDC), removable terminal block, reverse-polarity protection
- Operating Temperature: –10 to 60 °C (standard model)
- Housing & Mounting: Metal enclosure, IP40 rated, DIN-rail mountable (58 × 135 × 105 mm; ~1030 g)
- Certifications: IEC 62443-4-2 Security Level 2, IACS UR E27, IEC 61162-460 Edition 3.0, EN 55032/35, IEC 61850-3, IEEE 1613, DNV, NEMA TS2
