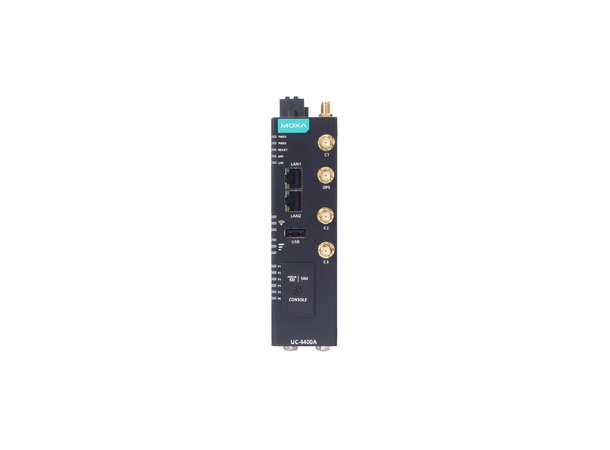

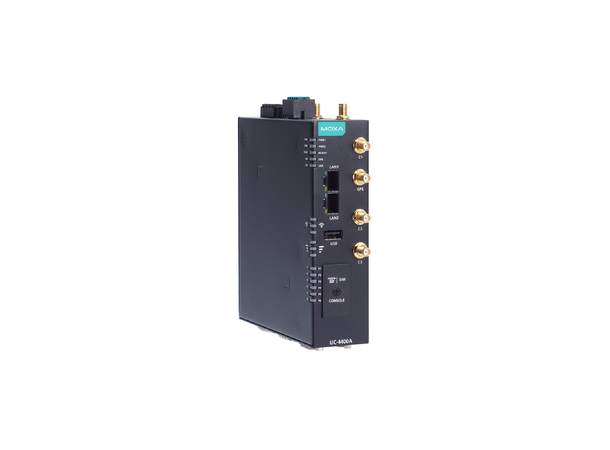

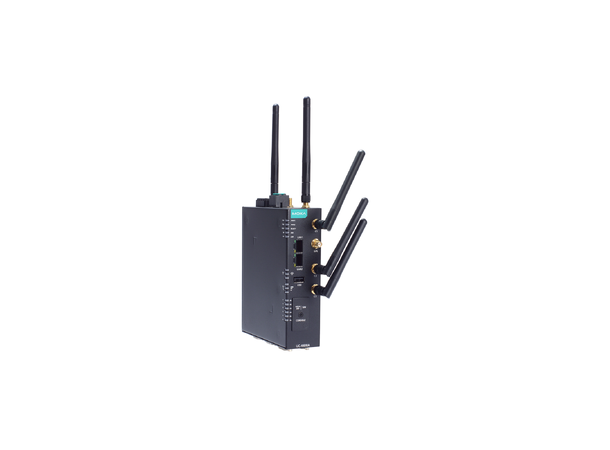

Moxa UC-4450A-T-5G

The Moxa UC-4450A-T-5G is a rugged, quad-core Arm-based industrial computer with built-in 5G NR, designed for demanding edge and field applications. It offers multiple communication interfaces (serial, CAN, Ethernet, digital I/O), a wide operating temperature range, and support for long-term industrial Linux releases. It includes an expansion slot for WiFi 6E and is suited for remote monitoring, IIoT, and data acquisition under harsh environments.

Key Features

• Processor: Arm Cortex-A53 quad-core, 1.6 GHz :contentReference[oaicite:0]{index=0}
• Memory: 4 GB LPDDR4 :contentReference[oaicite:1]{index=1}
• Storage (pre-installed): 16 GB eMMC :contentReference[oaicite:2]{index=2}
• Ethernet Ports: 2 × auto-sensing 10/100/1000 Mbps (RJ-45) :contentReference[oaicite:3]{index=3}
• Serial Ports: 2 × RS-232/422/485 (software-selectable, DB9) :contentReference[oaicite:4]{index=4}
• CAN Port: 1 × CAN 2.0 A/B :contentReference[oaicite:5]{index=5}
• Digital I/O: 4 inputs, 4 outputs :contentReference[oaicite:6]{index=6}
• Wireless: Built-in 5G NR module; expansion for WiFi 6E module :contentReference[oaicite:7]{index=7}
• Supported OS: Moxa Industrial Linux 3 (Debian 11, kernel 5.10) with long-term support through 2031 :contentReference[oaicite:8]{index=8}
• Temperature Range: -40°C to 70°C operating :contentReference[oaicite:9]{index=9}
