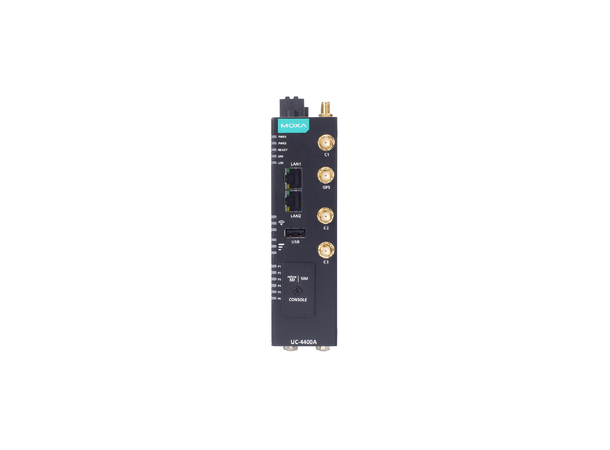

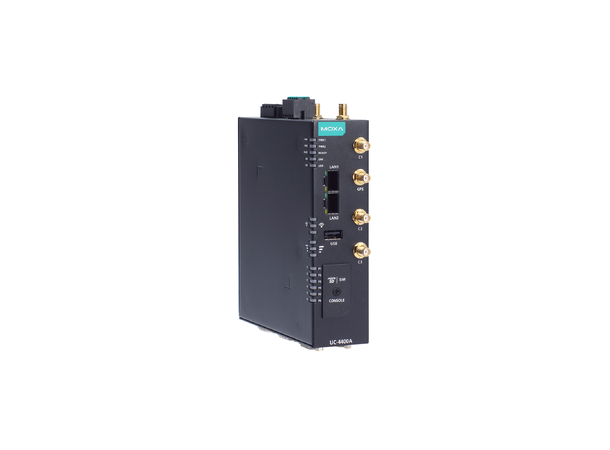

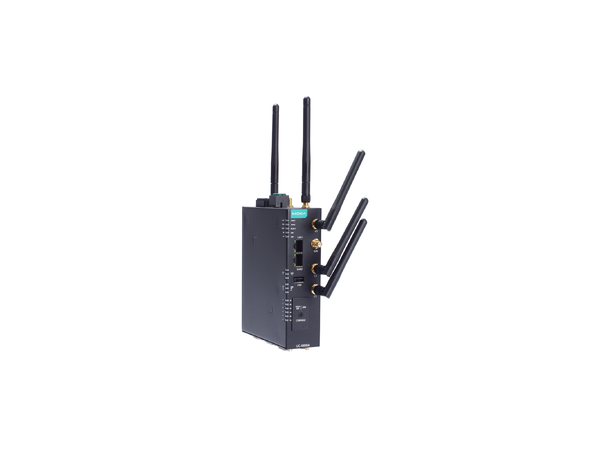

Moxa UC-4414A-I-T
The Moxa UC-4414A-I-T is a rugged, fanless Arm® Cortex®-A53 quad-core industrial computer designed for embedded data acquisition and edge computing in harsh environments. With rich I/O options including dual CAN ports, isolated serial interfaces, and digital I/O, it is ideal for industrial automation, energy monitoring, and IIoT gateway applications. The “-I-T” variant supports extended temperature ranges and includes 2-kV isolation on select ports, ensuring reliable operation in demanding conditions.
Key Features
- Processor: Arm Cortex-A53 quad-core 64-bit, 1.6 GHz
- Memory: 4 GB LPDDR4 RAM, 16 GB eMMC storage
- Operating System: Moxa Industrial Linux 3 (Debian 11, kernel 5.10)
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial Ports: 4 x RS-232/422/485 (DB9, software-selectable, 2 with 2-kV isolation)
- CAN Ports: 2 x CAN 2.0 A/B with 2-kV isolation
- Digital I/O: 4 x DI, 4 x DO
- USB: 1 x USB 2.0 (Type-A)
- Expansion: microSD socket
- Security: TPM v2.0; IEC 62443-4-2 SL2 compliant
- Power Input: 9 to 48 VDC
- Operating Temperature: -40 to 75°C
- Certifications: CE, FCC, UL, ATEX Zone 2, Class I Div 2
- Mounting: DIN-rail or wall-mountable
- Warranty & Support: 5-year hardware warranty, 10-year OS support
