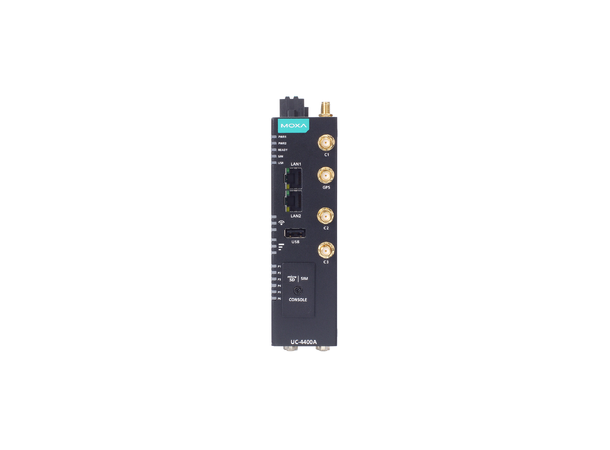

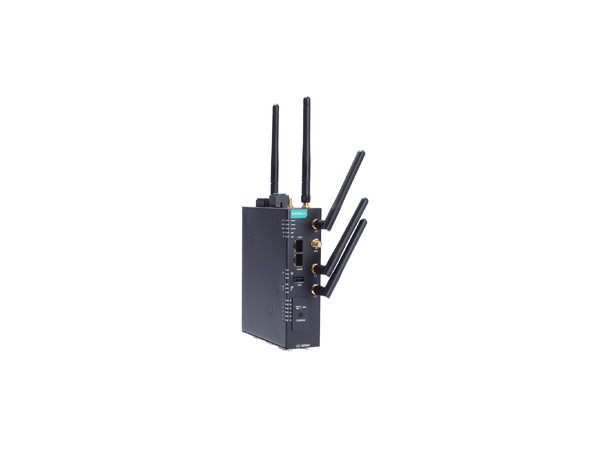

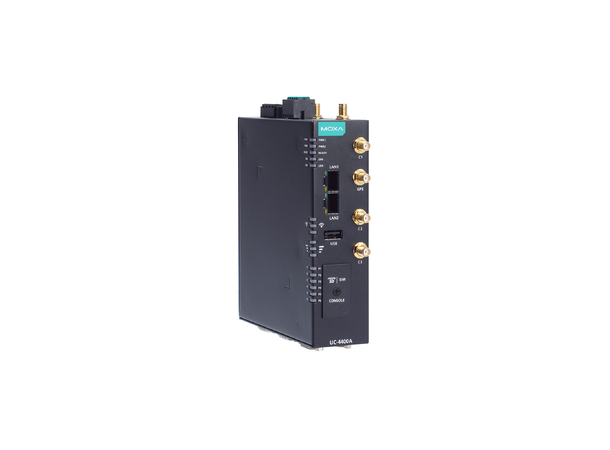

Moxa UC-4430A-T

The Moxa UC-4430A-T is a rugged, fanless Arm® Cortex®-A53 quad-core industrial computer designed for secure and reliable edge computing in harsh environments. With flexible expansion slots for LTE and Wi-Fi modules, rich I/O interfaces, and Moxa Industrial Linux, it is ideal for IIoT applications such as remote monitoring, data acquisition, and predictive maintenance. The “-T” variant supports extended temperature ranges, ensuring dependable operation in demanding industrial settings.

Key Features

• Processor: Arm Cortex-A53 quad-core 64-bit, 1.6 GHz
• Memory: 4 GB LPDDR4 RAM, 16 GB eMMC storage
• Operating System: Moxa Industrial Linux 3 (Debian 11, kernel 5.10)
• Ethernet: 2 x 10/100/1000 Mbps (RJ45)
• Serial Ports: 2 x RS-232/422/485 (DB9, software-selectable)
• CAN Port: 1 x CAN 2.0 A/B with 2-kV isolation
• Digital I/O: 4 x DI, 4 x DO
• USB: 1 x USB 2.0 (Type-A)
• Expansion Slots: 1 x M.2 E-key (Wi-Fi), 1 x mPCIe (LTE)
• SIM Slots: Dual nano SIM
• GPS: Optional via SMA connector
• Security: TPM v2.0; IEC 62443-4-2 SL2 compliant
• Power Input: 9 to 48 VDC
• Operating Temperature: -40 to 70°C
• Certifications: CE, FCC, UL, ATEX Zone 2, Class I Div 2
• Mounting: DIN-rail or wall-mountable
• Warranty & Support: 5-year hardware warranty, 10-year OS support
