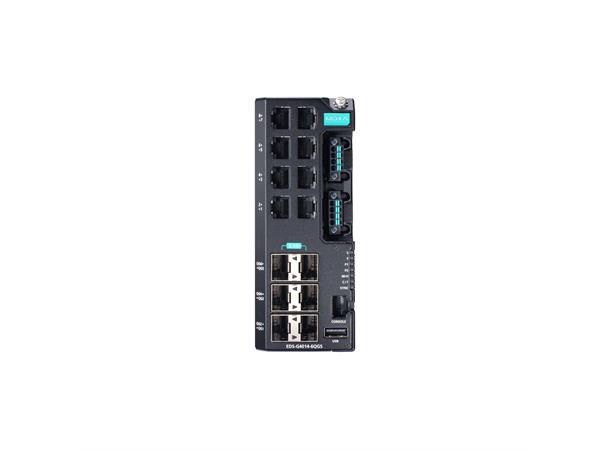

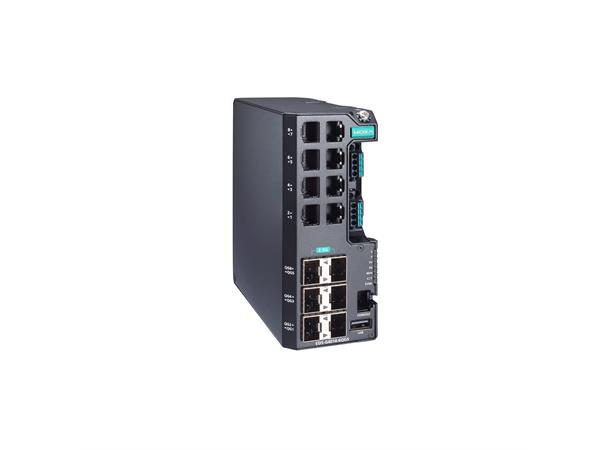

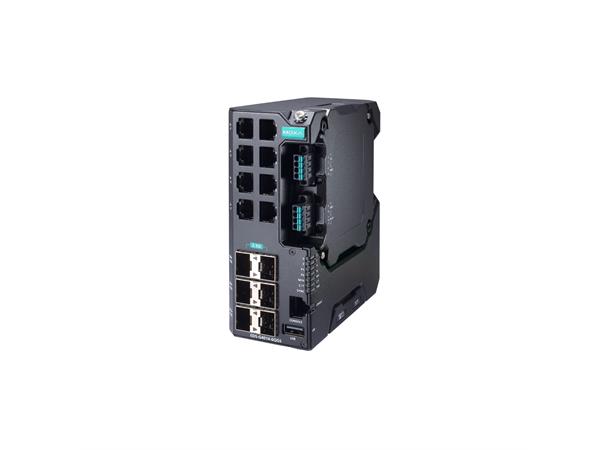

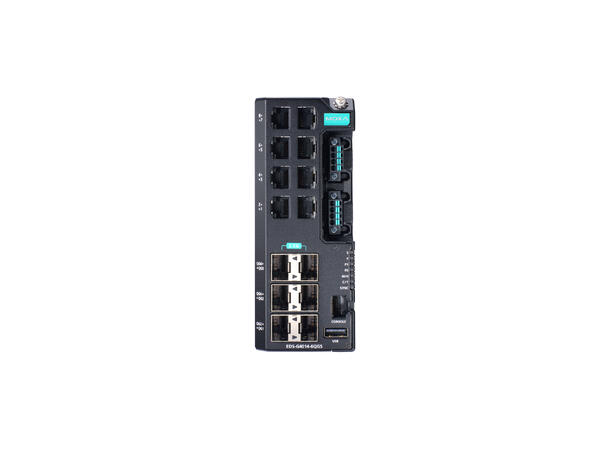

Moxa EDS-G4014-6QGS-LV-T
The Moxa EDS-G4014-6QGS-LV-T is an industrial-grade, full-Gigabit managed Ethernet switch featuring 8 copper Gigabit ports and 6 combo SFP ports (supporting 1000/2500 Base). It accepts dual redundant low-voltage DC inputs (12/24/48?VDC) and is designed for harsh environments with extended operating temperatures from –40?°C to 75?°C.
Key Features
- Ethernet Interfaces: 8 × 10/100/1000BaseT(X) RJ45 + 6 combo ports (1000/2500 Base SFP)
- Power Input: Dual redundant 12/24/48?VDC inputs (operating range 9.6–60?VDC)
- Operating Temperature: –40?°C to 75?°C
- Layer?2 Features: IEEE 802.1Q VLAN, Link Aggregation (802.3ad), IGMP Snooping, Jumbo frame support up to 9,216 bytes
- Redundancy & Protocols: Turbo Ring v2, Turbo Chain, RSTP/STP, Dual-Homing
- Security & Access Control: IEEE 802.1X, ACL, MAC filtering, HTTPS/SSL, SSH, RADIUS / TACACS+
- Switch Capacity: 16K MAC entries, up to 256 VLANs, 512 IGMP groups
- Physical & Environment: Rugged metal enclosure, DIN-rail mountable, IP40 rating
- Certifications & Standards: IEC 62443-4-1 & 62443-4-2 cybersecurity compliance, EMC per EN 55032/35 & IEC 61000 series
- Dimensions & Weight: 55 × 140 × 122.5 mm, approx. 846 g
