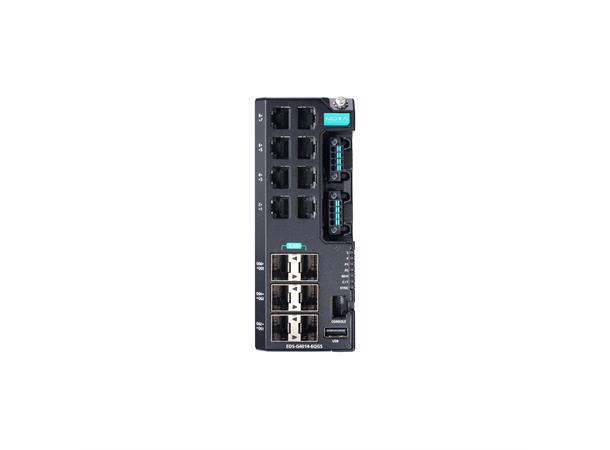

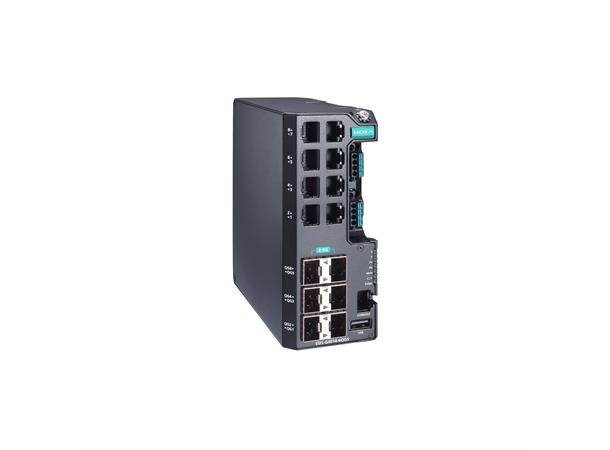

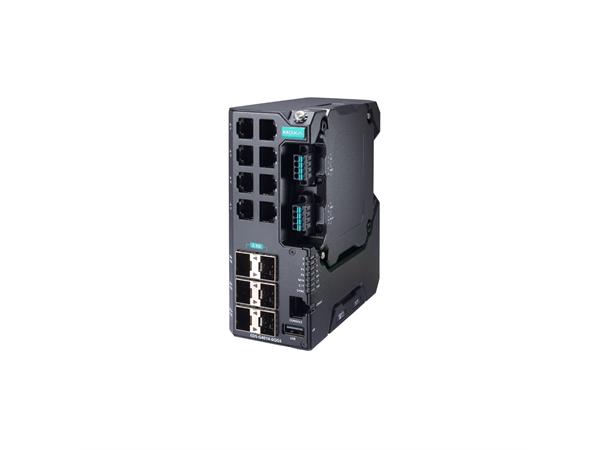

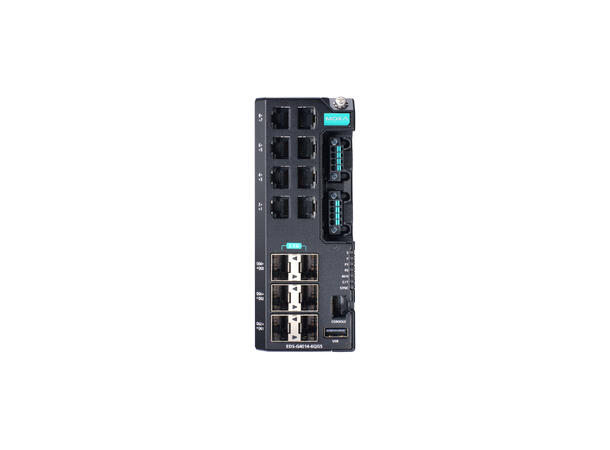

Moxa EDS-G4014-6QGS-LV

The Moxa EDS-G4014-6QGS-LV is an industrial-grade, Layer 2 managed Ethernet switch featuring 8 copper Gigabit ports and 6 combo ports (copper or SFP). It supports dual redundant low-voltage DC power inputs (12/24/48 VDC) and operates over a standard industrial temperature range of –10?°C to 60?°C.

Key Features

• Ethernet Interfaces: 8 × 10/100/1000BaseT(X) RJ45 + 6 combo SFP ports (1000/2500Base)
• Power Input: Dual redundant 12/24/48 VDC inputs (9.6–60 VDC)
• Operating Temperature: –10?°C to 60?°C
• Layer 2 Features: IEEE 802.1Q VLAN, Link Aggregation (802.3ad LACP), IGMP Snooping, Jumbo frame support (9,216 bytes)
• Redundancy & Protocols: Turbo Ring v2, Turbo Chain, RSTP/STP, Dual-homing, MSTP
• Security & Access Control: 802.1X authentication, ACL, MAC filtering, HTTPS/SSL, SSH, RADIUS, TACACS+
• Switch Capacity: 16K MAC table entries, up to 256 VLANs, 512 IGMP groups
• Physical & Environment: Rugged metal enclosure, DIN-rail mountable, IP40 rated
• Certifications & Standards: IEC 62443, EMC (EN 55032/35, IEC 61000), UL
• Dimensions & Weight: 55 × 140 × 122.5 mm, ~846 g
