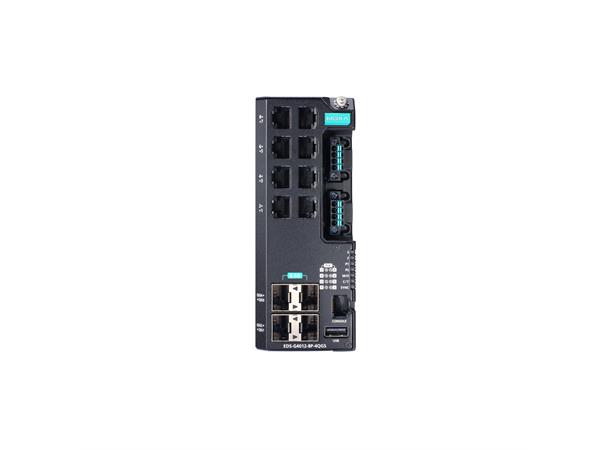

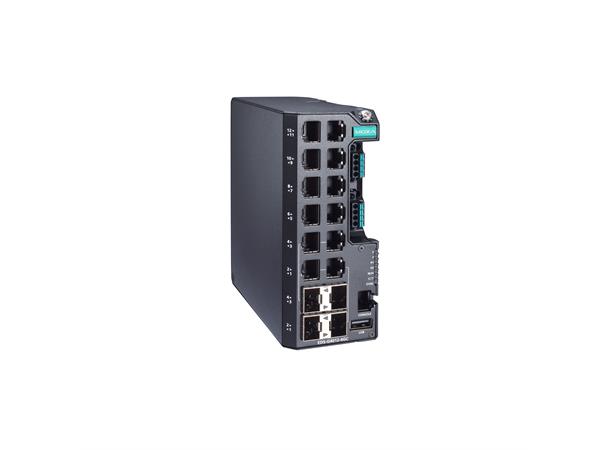

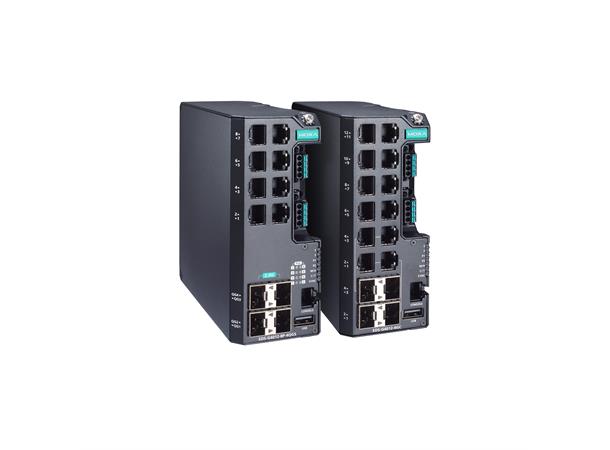

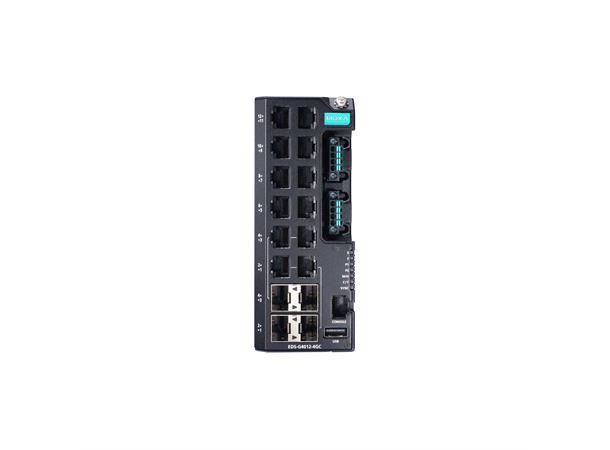

Moxa EDS-G4012-4GC-LV-T

The Moxa EDS-G4012-4GC-LV-T is an industrial-grade, full-Gigabit Layer 2 managed Ethernet switch featuring 12 ports (8 × 10/100/1000BaseT(X) RJ45 and 4 combo ports supporting 10/100/1000BaseT(X) or 100/1000Base SFP). It accepts dual redundant low-voltage DC inputs (12/24/48 VDC) and is designed for rugged environments with an operating temperature range from -40 °C to 75 °C, making it ideal for automation, process control, and infrastructure networks.

Key Features

• Ethernet Interfaces: 8 × 10/100/1000BaseT(X) RJ45 + 4 combo ports (10/100/1000BaseT(X) or 100/1000 Base SFP)
• Power Input: Dual redundant 12/24/48 VDC inputs (operating range 9.6–60 VDC)
• Operating Temperature: -40 °C to 75 °C (wide-temperature model)
• Managed Layer 2 Features: IEEE 802.1Q VLAN, IGMP Snooping v1–v3, Link Aggregation (802.3ad), Jumbo frame support up to 9,216 bytes
• Security & Access Control: IEEE 802.1X authentication, MAC filtering, Access Control List (ACL), HTTPS/SSL, SSH, RADIUS/TACACS+ support
• Housing & Mounting: Rugged metal enclosure, DIN-rail mountable for industrial deployment
