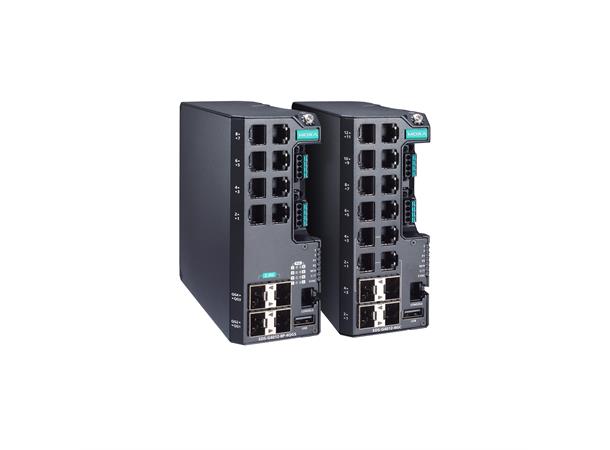

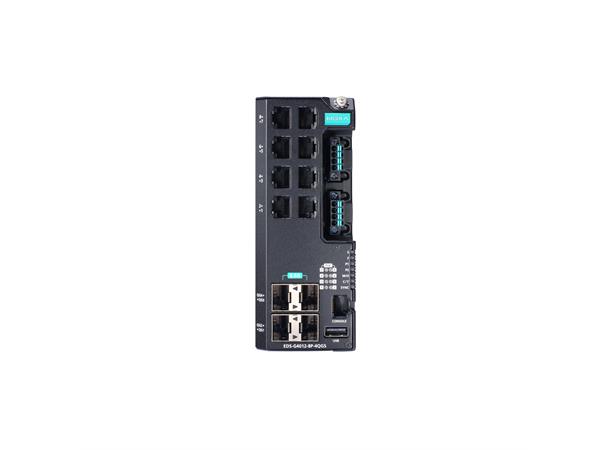

Moxa EDS-G4012-8P-4QGS-LVA-T
The Moxa EDS-G4012-8P-4QGS-LVA-T is an industrial-grade, full-Gigabit PoE switch. It features eight 10/100/1000BaseT(X) RJ45 ports with PoE and four combo ports (copper or SFP) supporting up to 2.5?Gbps. It supports dual redundant low-voltage DC power (12/24/48?VDC) and is built for harsh environments with an extended temperature range from -40?°C to 75?°C.
Key Features
- Ethernet Interfaces: 8 × 10/100/1000BaseT(X) RJ45 with PoE + 4 combo ports (10/100/1000BaseT(X) or 100/1000Base SFP)
- Power & PoE: Dual redundant 12/24/48 VDC inputs (operating 9.6–60 VDC), PoE output powered via 48 VDC supply
- Operating Temperature: -40?°C to 75?°C (wide-temperature “-T” model)
- Standards & Switching: Supports IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3bz, 802.3ad, 802.1Q VLAN, 802.1p QoS
- Redundancy & Resilience: Turbo Ring v2, Turbo Chain, RSTP/STP, Ring coupling, dual-homing
- Security & Access: 802.1X authentication, ACL, MAC filtering, HTTPS/SSL, SSH, RADIUS, TACACS+ support
- MAC / VLAN / Frame Capacity: 16?K MAC entries, up to 256 VLANs, jumbo frames up to 9,216 bytes
- Physical & Environment: Rugged metal enclosure, DIN-rail mountable, surge protection on LAN ports
