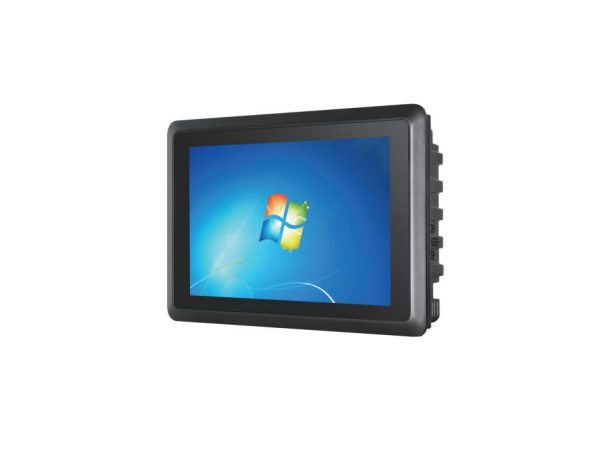

TPC101-QD2-i5-1235U 10,1" Panel-PC

By default, there is no operating system included in the standard package (it can be added upon request).

Available in multiple configurations (Windows, Android, Pure Monitor), please contact sales

Internals

• Industrial motherboard for a long lifespan
• CPU: Intel® Core i5-1235U 1,3GHz, max turbo 4,4GHz
• 1 x 8G DDR4 Memory (optional 16/32GB)
• 10,1” 16:10 LCD screen HD 1280x800dpi, 300cd/m2
• Windows 10/11

Storage

• SSD: mSATA256GB (Standard) up to 1TB

Display

• TFT LCD 10,1" 16:10 1280x800dpi
• Brightness: 300cd/m2
• 50.000h MTBF backlight
• View angle: 85/85/85/85°

Touchscreen/glass

• 10-point PCAP touch for fingers
  (Standard, optional Resistive, No touch)

I/O connections

• 1xDC (5,5x2,5mm) 12-36VDC
• 2x USB2.0, 2xUSB3.0
• 2x LAN RJ45 (10/100/1000M)
• 1x HDMI
• 1x SIM
• 1xVGA
• 1xAudio I/O
• 2xWifi Antenna

For more technical details and options see datasheet
