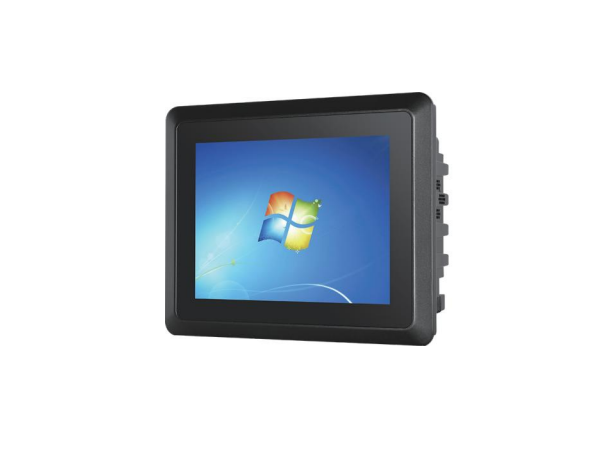

TPC008-QD2-i5-1235U 8" Panel-PC
By default, there is no operating system included in the standard package (it can be added upon request).
Available in multiple configurations (Windows, Android, Pure Monitor), please contact sales
Internals
- Industrial motherboard for a long lifespan
- CPU: Intel® Core i5-1235U 1,3GHz, max turbo 4,4GHz
- 1 x 8G DDR4 Memory (optional 16/32GB)
- 8” 4:3 LCD screen HD 1024x700dpi, 300cd/m2
- Windows 10/11
Storage
- SSD: mSATA256GB (Standard) up to 1TB
Display
- TFT LCD 8” 4:3 1024x700dpi
- Brightness: 300cd/m2
- 50.000h MTBF backlight
- View angle: 85/85/85/85°
Touchscreen/glass
- 10-point PCAP touch for fingers
(Standard, optional Resistive, No touch)
I/O connections
- 1xDC (5,5x2,5mm) 12-36VDC
- 2x USB2.0, 2xUSB3.0
- 2x LAN RJ45 (10/100/1000M)
- 1x HDMI
- 1x SIM
- 1xVGA
- 1xAudio I/O
- 2xWifi Antenna
For more technical details and options see datasheet
