Product SKUs

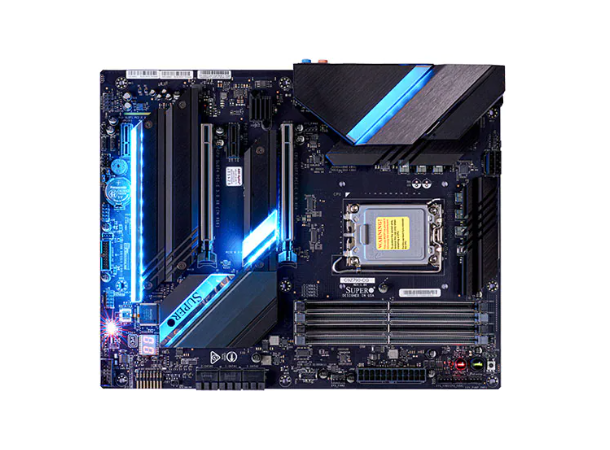

MBD-C9Z790-CGW

Physical Stats

Form Factor

• ATX

Dimension

• 12" x 9.6" (30.48cm x 24.38cm)

Processor

CPU

• 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® Processors
• Single Socket LGA-1700 (Socket V) supported,
  CPU TDP supports Up to 150W TDP

Core

• Up to 8+16 cores, 32 threads

System Memory

Memory Capacity

• 4 DIMM slots
• Up to 192GB Unbuffered non-ECC UDIMM,
  DDR5-4400MHz

Memory Type

• 4400 MT/s 192GB Unbufferred Non ECC UDIMM

DIMM Sizes

• 8GB, 24GB, 16GB, 32GB, 48GB

Memory Voltage

• 1.1V

On-Board Devices

Chipset

• Intel® Z790

SATA

• Intel® Z790 Express controller for 6 SATA 3 (6 Gbps) ports;
  RAID 0,1,5,10

Audio

• RealTek ALC 1220 7.1 HD Audio

Network Controllers

• Single LAN with 1Gb Intel® Ethernet PHY I219-V
• Single LAN with 10Gb Marvell AQC113C
• 2.4Gbps Wi-Fi 6E + Bluetooth 5.3 (C9Z790-CGW only)

Input / Output

SATA

• 6 SATA 3 port(s)

USB

• 6 USB 2 port(s) (2 via header; 4 rear Type-A)
• 2 USB 3.2 Gen 2 port(s) (2 rear Type-A)
• 3 USB 3.2 Gen 2x2 port(s) (2 rear Type-C; 1 via header)
• 2 USB 3.2 Gen 1 port(s) (2 via header)

Video Output

• 1 HDMI port(s), 1 DP (DisplayPort) port(s)

Serial Port

• 1 COM Port(s) (1 header)

TPM

• 1 TPM Header

Expansion Slots

PCIe

• 2 PCIe 5.0 x16 slots (16/NA or 8/8),
• 2 PCIe 3.0 x1

M.2

• M.2 Interface: 1 PCIe 4.0 x4, RAID 0, 1, 5; 2 PCIe 3.0 x4,
   RAID 0, 1, 5; 1 CNVi
• Form Factor: 2260/2280, 2260/2280/22110, 2230
• Key: M-Key, M-Key, E-Key

System BIOS

BIOS Type

• 256MB SPI Flash with AMI BIOS

BIOS Features

• ACPI 6.0
• Plug and Play (PnP)
• BIOS rescue hot keys
• SMBIOS 3.0 or later
• Riser card auto-detection support

Management

Software

• SuperDoctor® 5

System Management Software

• SuperDoctor® 5

Power Configurations

• ACPI Power Management

PC Health Monitoring

Voltage

• VBAT, System temperature, PCH temperature,
  CPU temperature,
  3.3V standby, 1.05 (PCH), +5V, +3.3V, +12V,
  CPU thermal trip support, +1.8V CPU

FAN

• 5x 4-pin fan headers (up to 5 fans)
• Fan speed control
• 5 fans with tachometer status monitoring
• Overheat LED indication

Other Features

• WOL, RoHS, CPU thermal trip support for processor
  protection,
  Control of power-on for recovery from AC power loss,
  Chassis intrusion header, ATX Power connector,
  ACPI power management, 8-pin 12v DC power connector,
  Voltage and Frequency Overclocking

Operating Environment

Operating Temperature Range

• 0°C - 50°C (32°F - 122°F)
