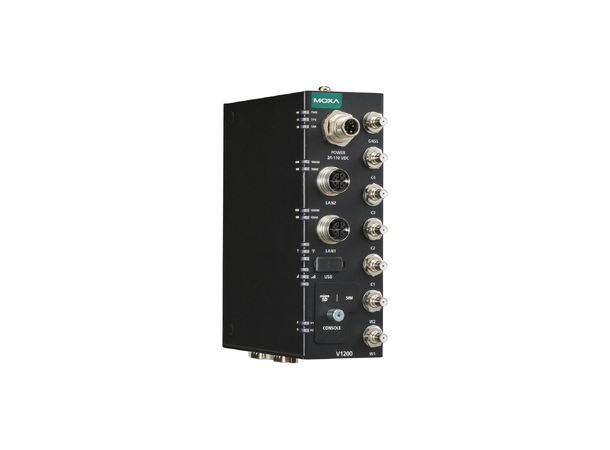

Moxa V1222-CT-T

The Moxa V1222-CT-T is a compact, fanless Arm-based industrial computer designed for mission-critical applications such as railway TCMS, remote monitoring, and train-to-ground communications. Featuring dual SIM support, wireless-ready expansion slots for LTE and 5G, and built-in security features like TPM 2.0, it is optimized for long-term deployment in harsh environments. The system runs on Moxa Industrial Linux 3, ensuring extended support and reliability.

Key Features

• CPU: Arm Cortex-A53 quad-core 1.6 GHz
• Memory: 4 GB LPDDR4
• Storage: 16 GB eMMC (pre-installed), microSD slot x 1
• Operating System: Moxa Industrial Linux 3 (Debian 11, kernel 5.10), supported until 2031
• Ethernet Ports: 2 x 10/100/1000 Mbps (M12 X-coded)
• Serial Ports: 2 x RS-232/422/485 (DB9 male, software-selectable)
• USB Ports: 1 x USB 2.0 Type-A
• Wireless Expansion:
  • M.2 E-key slot for Wi-Fi 6
  • M.2 B-key slot for 5G
  • mPCIe slot for LTE (Note: 5G and LTE cannot operate simultaneously)
• SIM Support: Dual nano SIMs (2 for 5G or 2 for LTE)
• Antenna Connectors:
  • Wi-Fi: QMA x 2
  • Cellular: QMA x 4
  • GPS: QMA x 1
• Security: TPM v2.0
• Operating Temperature: -40 to 70°C
• Certifications: EN 50155, IEC 62443-4-2

About the V1200 Series

The V1200 Series from Moxa includes compact Arm-based rail computers optimized for railway and industrial automation. With integrated LTE, 5G, and Wi-Fi 6 modules, dual SIM support, and multiple mounting options, these systems are ideal for data acquisition, wireless communication, and secure remote access. Built on Moxa Industrial Linux, the series ensures long-term support and security patching, making it a reliable platform for modern industrial applications.
