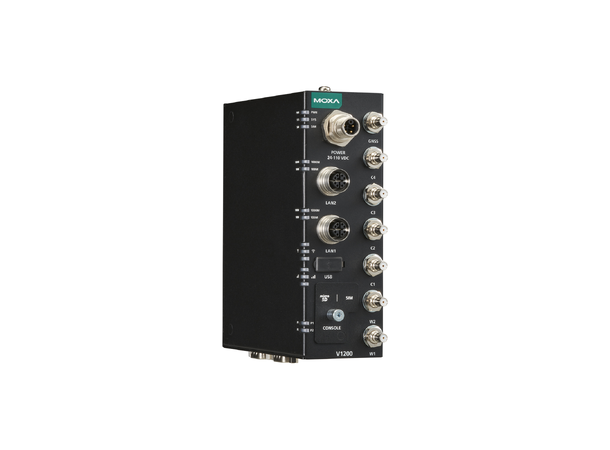

Moxa V1200-5G
The Moxa V1200-5G is a compact, fanless Arm-based industrial computer designed for space-critical and mission-critical applications such as railway TCMS, remote monitoring, and train-to-ground communications. Equipped with a Telit FN990A28W 5G module, dual SIM support, and Moxa Industrial Linux, it offers long-term reliability, robust wireless connectivity, and enhanced security features. Its rugged design and wide operating temperature range make it ideal for harsh environments.
Key Features
- CPU: Arm Cortex-A53 quad-core 1.6 GHz
- Memory: 4 GB LPDDR4
- Storage: Pre-installed 16 GB eMMC, microSD slot x 1
- Operating System: Moxa Industrial Linux 3 (Debian 11, kernel 5.10), supported until 2031
- Ethernet Ports: 2 x 10/100/1000 Mbps (M12 X-coded)
- Serial Ports: 2 x RS-232/422/485 (DB9 male, software-selectable)
- USB Ports: 1 x USB 2.0 Type-A
- Wireless Expansion:
- M.2 E-key slot for Wi-Fi 6
- M.2 B-key slot for 5G
- mPCIe slot for LTE (Note: 5G and LTE cannot operate simultaneously)
- SIM Support: Dual nano SIMs
- Antenna Connectors:
- Wi-Fi: QMA x 2
- Cellular: QMA x 4
- GPS: QMA x 1
- Security: TPM v2.0
- Operating Temperature: -40 to 70°C
- Certifications: EN 50155, IEC 62443-4-2
About the V1200 Series
The V1200 Series from Moxa includes compact Arm-based rail computers optimized for railway and industrial automation. With integrated 5G and Wi-Fi 6 modules, dual SIM support, and multiple mounting options, these systems are ideal for data acquisition, wireless communication, and secure remote access. Built on Moxa Industrial Linux, the series ensures long-term support and security patching, making it a reliable platform for modern industrial applications.
