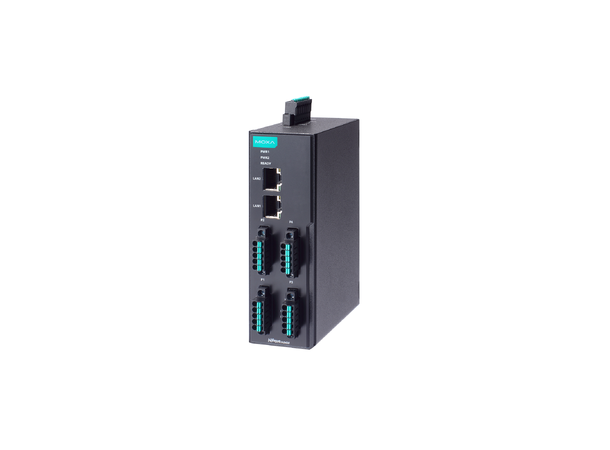

Moxa NPort IA5450I-TB-G2-T

The Moxa NPort IA5450I-TB-G2-T is a robust, industrial-grade 4-port serial device server designed for demanding environments. It features spring-type terminal block connectors, 2 kV serial isolation, and dual Ethernet ports for network redundancy or cascading. With support for RS-232/422/485 interfaces and wide operating temperatures (-40 to 75°C), it ensures reliable serial-to-Ethernet connectivity in mission-critical applications such as oil & gas, power automation, and transportation.

Key Features

• Serial Interface: 4 x RS-232/422/485 via 5-pin spring-type terminal blocks, 2 kV isolation
• Ethernet Interface: 2 x 10/100BaseT(X) RJ45 (Auto MDI/MDI-X)
• Magnetic Isolation: 1.5 kV built-in
• Surge Protection: IEC 61000-4-5 compliant for serial, Ethernet, and power
• Operating Modes: Real COM, TCP Server, TCP Client, UDP, Pair Connection, Terminal, Reverse Terminal
• Management: Web console (HTTP/HTTPS), SNMPv1/v2c/v3, MXview, MXconfig
• Security: ECC-256/384/521, RSA-1024/2048/3072/4096, AES-128/256, SHA-256/384, HMAC, Secure Boot, TRNG
• Power Inputs: Dual redundant DC inputs (12–48 VDC)
• Relay Output: Alerts for Ethernet/power failures or serial signal changes
• Operating Temperature: -40 to 75°C
• Housing: Metal, IP30-rated, DIN-rail mountable
• Certifications: DNV, ATEX Zone 2, IECEx, CID2 (approval pending)

About the NPort IA5000-G2 Series

The NPort IA5000-G2 Series includes 1, 2, and 4-port DIN-rail serial device servers tailored for industrial automation. These devices offer dual Ethernet ports for redundancy or cascading, support for nonstandard baudrates, and advanced security and diagnostic features. Designed for easy deployment and reliable performance, they are ideal for connecting PLCs, sensors, meters, and other serial devices to Ethernet networks.
