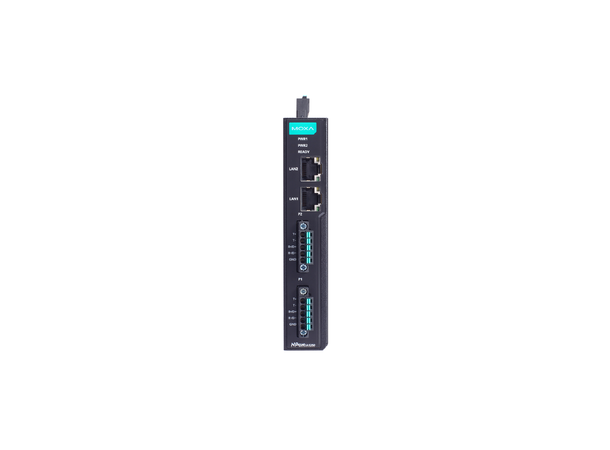

Moxa NPort IA5250-TB-G2-T
The Moxa NPort IA5250-TB-G2-T is a rugged, industrial-grade 2-port serial device server engineered for harsh environments. It supports RS-232/422/485 on both serial ports (via terminal-block connectors) and features dual 10/100BaseT(X) Ethernet ports with built-in isolation. With comprehensive surge protection, wide input voltage tolerance, wide temperature operation, and industrial certifications, it ensures robust serial-to-Ethernet connectivity in critical applications such as energy, transportation, and factory automation.
Key Features
- Serial Interfaces: 2 × RS-232/422/485 via 5-pin terminal block connectors
- Ethernet Interfaces: 2 × 10/100BaseT(X) RJ45 (auto MDI/MDI-X)
- Magnetic Isolation: 1.5 kV built-in
- Surge Protection: IEC 61000-4-5 compliance on signal, power, and Ethernet lines
- Operating Modes: Real COM, TCP Server, TCP Client, UDP, Reverse Terminal, RFC 2217, Pair Connection, etc.
- Management: Web console (HTTP/HTTPS), Device Search Utility, MCC tool, SNMPv1/v2c/v3
- Security: Secure Boot, TRNG, ECC-256/384/521, RSA, AES-128/256, SHA-256/384, HMAC
- Power Input: Terminal block dual DC inputs (12–48 VDC)
- Relay Output: Configurable alerts for Ethernet or power failures (resistive load 1 A @ 30 VAC)
- Operating Temperature: –40 to 75 °C for wide-temperature models
- Housing: Metal enclosure, IP30 rated, DIN-rail mountable
- Certifications & Standards: EN 55032/35, IEC 61000 EMC/EMS, ATEX / IECEx, DNV (model dependent)
- Dimensions & Weight: 25 × 89 × 129 mm; ~ 394 g
