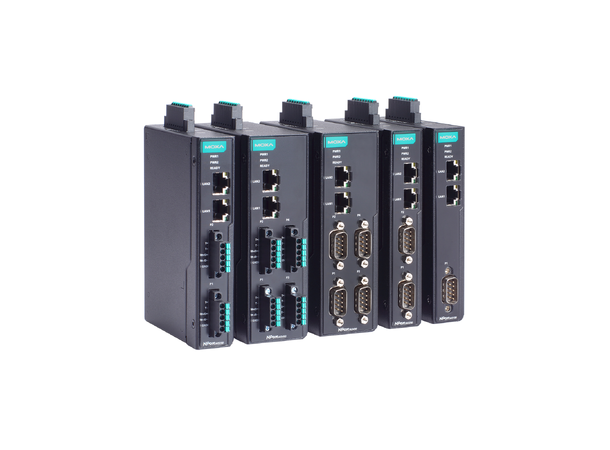

Moxa NPort IA5250-G2-T
The Moxa NPort IA5250-G2-T is a rugged, industrial-grade 2-port serial device server engineered for harsh environments. It supports RS-232/422/485 on both serial ports and features dual 10/100BaseT(X) Ethernet interfaces. With built-in 1.5 kV magnetic isolation, surge protection, dual DC power inputs (12–48 VDC), and wide temperature operation, it offers reliable serial-to-Ethernet connectivity even in challenging industrial applications such as energy, transportation, and factory automation.
Key Features
- Serial Interfaces: 2 × RS-232/422/485 (DB9 connectors) :contentReference[oaicite:0]{index=0}
- Ethernet Interface: 2 × 10/100BaseT(X) RJ45 (auto MDI/MDI-X) :contentReference[oaicite:1]{index=1}
- Magnetic Isolation: 1.5 kV built-in :contentReference[oaicite:2]{index=2}
- Surge Protection: IEC 61000-4-5 compliant for power / signal lines :contentReference[oaicite:3]{index=3}
- Operating Modes: Real COM, TCP Server, TCP Client, UDP, Pair Connection, Reverse Terminal, RFC2217, etc. :contentReference[oaicite:4]{index=4}
- Management: Web console (HTTP/HTTPS), SNMPv1/2c/3, device search utility, MCC tool :contentReference[oaicite:5]{index=5}
- Security: Secure Boot, TRNG, ECC-256/384/521, RSA (1024/2048/3072/4096), AES-128/256, SHA-256/384, HMAC :contentReference[oaicite:6]{index=6}
- Power Inputs: Dual redundant DC inputs (12–48 VDC) :contentReference[oaicite:7]{index=7}
- Relay Output: Alerts for Ethernet or power failures (configurable) :contentReference[oaicite:8]{index=8}
- Operating Temperature: –40 to 75 °C (wide-temperature model) :contentReference[oaicite:9]{index=9}
- Housing: Metal shell, IP30 protection, DIN-rail mountable :contentReference[oaicite:10]{index=10}
- Certifications: ATEX Zone 2, IECEx, DNV, C1D2 (model-dependent) :contentReference[oaicite:11]{index=11}
- Dimensions & Weight: 25 × 89 × 129 mm, ~394 g :contentReference[oaicite:12]{index=12}
