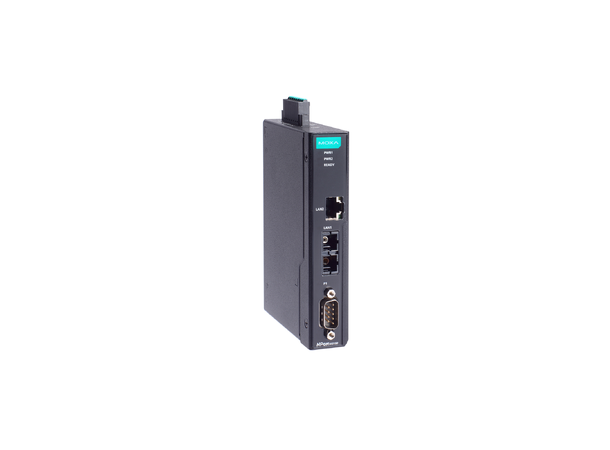

Moxa NPort IA5150-M-SC-G2
The Moxa NPort IA5150-M-SC-G2 is a rugged, industrial-grade 1-port serial device server equipped with a 100BaseFX multi-mode fiber Ethernet port (SC connector). Designed for reliable serial-to-Ethernet connectivity in harsh environments, it supports RS-232/422/485 interfaces and offers advanced surge protection and secure communication protocols. Ideal for applications in oil & gas, power automation, and transportation, it ensures dependable performance even in electrically noisy or hazardous locations.
Key Features
- Serial Interface: 1 x RS-232/422/485 (DB9 and terminal block)
- Ethernet Interface: 1 x 100BaseFX (multi-mode SC connector), 2 x 10/100BaseT(X) RJ45
- Magnetic Isolation: 1.5 kV built-in
- Surge Protection: IEC 61000-4-5 compliant for serial, Ethernet, and power
- Operating Modes: Real COM, TCP Server, TCP Client, UDP, Pair Connection, Terminal, Reverse Terminal
- Management: Web console (HTTP/HTTPS), SNMPv1/v2c/v3, MXview, MXconfig
- Security: ECC-256/384/521, RSA-1024/2048/3072/4096, AES-128/256, SHA-256/384, HMAC, Secure Boot, TRNG
- Power Inputs: Dual redundant DC inputs (12–48 VDC)
- Relay Output: Alerts for Ethernet/power failures or serial signal changes
- Operating Temperature: -40 to 75°C (wide-temp models)
- Housing: Metal, IP30-rated, DIN-rail mountable
- Certifications: DNV, ATEX Zone 2, IECEx, CID2
