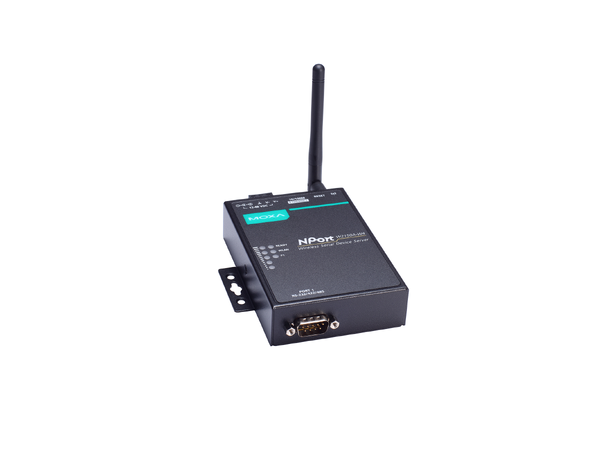

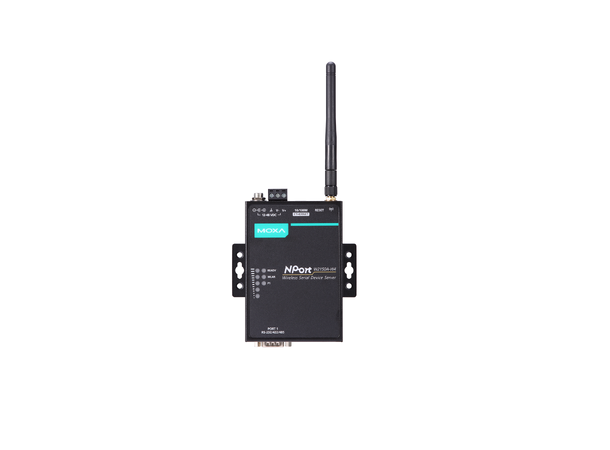

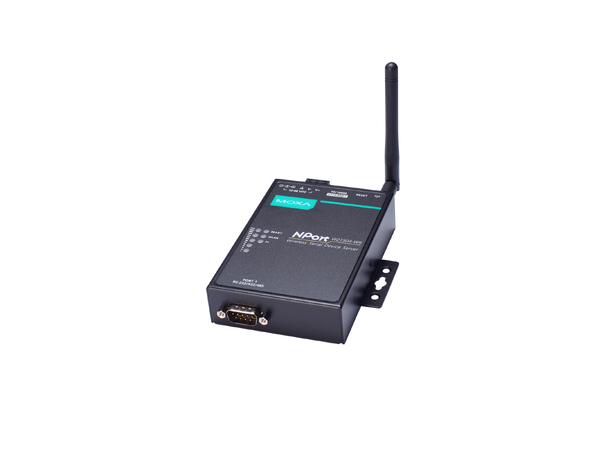

MOXA NPort W2150A-W4-T-EU

1-port RS-232/422/485 wireless device server with 802.11a/b/g/n WLAN EU band, 12 to 48 VDC, -40 to 75°C operating temperature

Features and Benefits

• Links serial and Ethernet devices to an IEEE 802.11a/b/g/n network
• Web-based configuration using built-in Ethernet or WLAN
• Secure Boot that only allows Moxa-authorized firmware to run on devices
• Remote configuration with HTTPS (TLS 1.3), SSH
• Secure data access with WEP, WPA, WPA2
• WPA/WPA2 Enterprise IEEE 802.1X/RADIUS (EAP-TLS 1.3)
• Fast roaming for quick automatic switching between access points
• Offline port buffering and serial data log
• Enhanced surge protection for serial, LAN, and power
• Dual power inputs (1 screw-type power jack, 1 terminal block)


Introduction

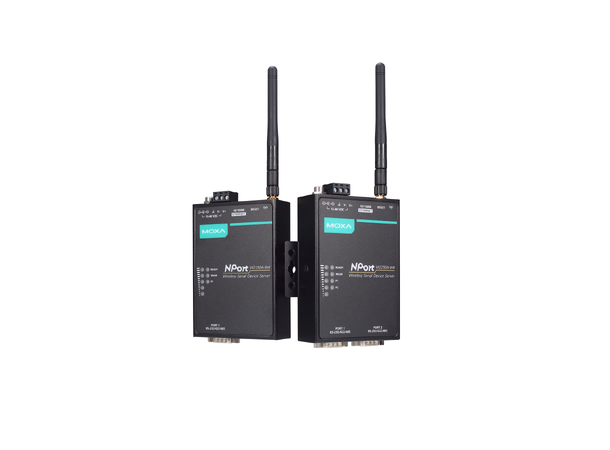

The NPort® W2150A-W4 and W2250A-W4 are the ideal choice for connecting your serial and Ethernet devices, such as PLCs, meters, and sensors, to a wireless LAN. Your communications software will be able to access the serial devices from anywhere over a wireless LAN. Moreover, the wireless device servers require fewer cables and are ideal for applications that involve difficult wiring situations. In Infrastructure Mode, the NPort® W2150A-W4 and NPort® W2250A-W4 can connect to Wi-Fi networks at offices and factories to allow users to move, or roam, between several APs (access points), and offer an excellent solution for devices that are frequently moved from place to place.
