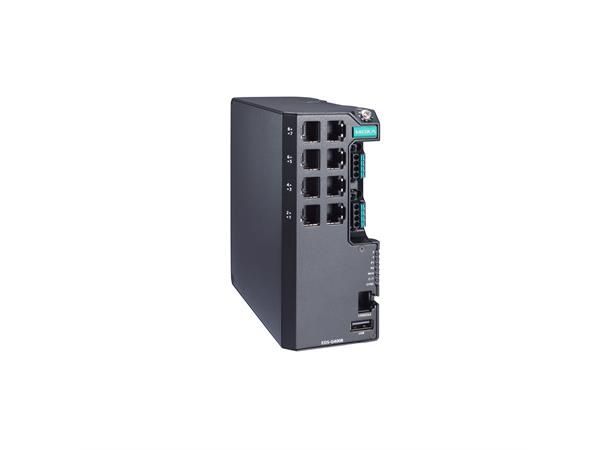

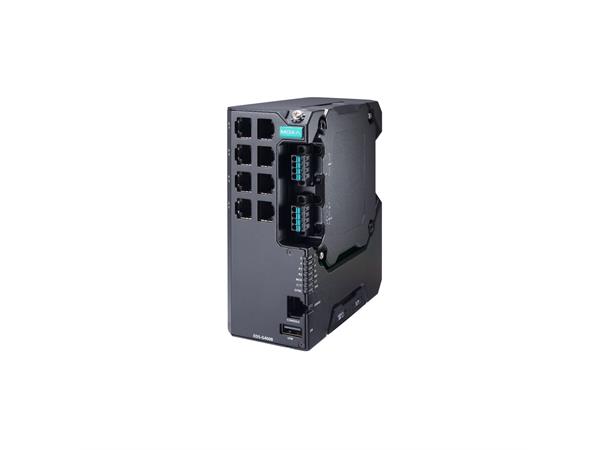

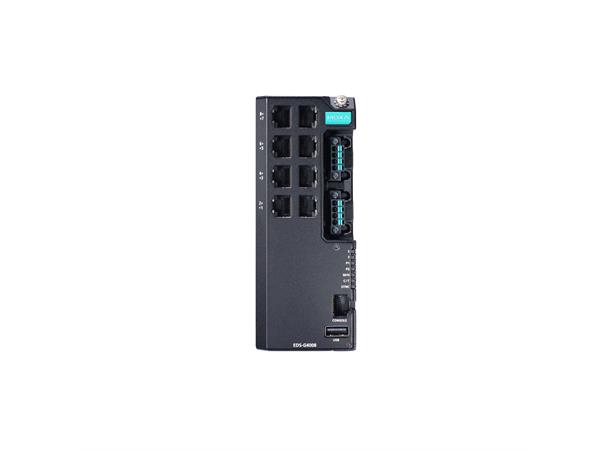

Moxa EDS-G4008-LV

The Moxa EDS-G4008-LV is an industrial-grade, full-Gigabit Layer?2 managed Ethernet switch with 8 × 10/100/1000BaseT(X) ports and dual low-voltage DC input capability. Designed for industrial networks, it supports advanced switching features and resilient design for reliable operation in control and automation systems.

Key Features

• Ethernet Interfaces: 8 × 10/100/1000BaseT(X) RJ45 (auto negotiation, auto MDI/MDI-X)
• Managed Layer?2 Features: IEEE 802.1Q VLAN, Link Aggregation (802.3ad), IGMP Snooping, Jumbo frames up to 9,216 bytes
• Network Redundancy: Turbo Ring v2, Turbo Chain, RSTP/STP, Ring Coupling, Dual Homing
• Security & Access Control: 802.1X authentication, MAC filtering, ACL, RADIUS/TACACS+, HTTPS/SSL, SSH
• Time Synchronization: SNTP, NTP, IEEE 1588v2 (PTP)
• MAC Table / VLAN: 16K MAC entries, support for multiple VLANs and IGMP groups
• Power Input: Dual low-voltage DC input (specific voltage range) with redundancy support
• Housing & Mounting: Rugged metal housing, DIN-rail mountable for industrial environments
• Certification & Security: Meets industrial cybersecurity standards (e.g. IEC?62443-4-2)
