Moxa ICS-G7826A-2XG-HV-HV-T

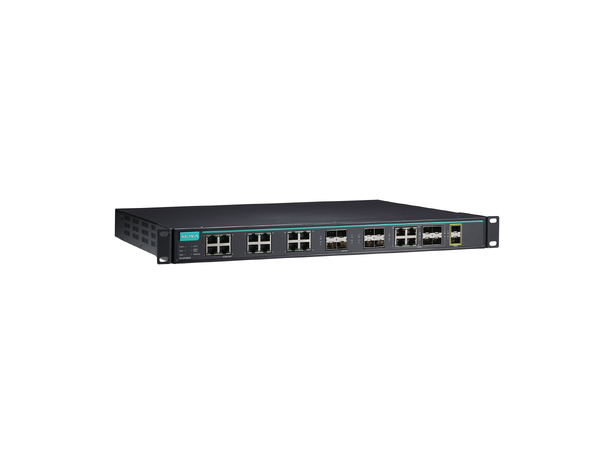

The Moxa ICS-G7826A-2XG-HV-HV-T is a high-performance industrial-grade rackmount switch designed for demanding network environments. It features a modular design with 20 10/100/1000BaseT(X) ports, 4 combo ports (10/100/1000BaseT(X) or 100/1000BaseSFP), and 2 10GbE SFP+ slots, providing robust connectivity options for industrial applications.

Key Features

• Modular Design: 20 10/100/1000BaseT(X) ports, 4 combo ports, and 2 10GbE SFP+ slots.
• High-Performance Ports: Up to 26 Ethernet ports.
• Wide Power Input Range: 85 to 264 VAC.
• Robust Design: Fanless design, -40 to 75°C operating temperature.
• Advanced Security: Supports HTTPS, SSL, RADIUS, and TACACS+.
• Easy Configuration: Command line interface (CLI) for quick configuration.
• Redundancy: Turbo Ring and Turbo Chain for network redundancy.

Moxa ICS-G7826A-2XG-HV-HV-T Specifications

Ethernet Interface

• 10/100/1000BaseT(X) Ports: 20 (RJ45 connector)
• 10GbE SFP+ Slots: 2
• Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP): 4
• Magnetic Isolation Protection: 1.5 kV (built-in)

Power Parameters

• Input Voltage: 85 to 264 VAC
• Power Consumption: 66.41 W @ 110 VAC, 67.96 W @ 220 VAC

Environmental Limits

• Operating Temperature: -40 to 75°C (-40 to 167°F)
• Storage Temperature: -40 to 85°C (-40 to 185°F)
• Ambient Relative Humidity: 5% to 95% (non-condensing)

Certifications

• Safety: UL 61010-2-201, EN 61010-2-201, UL 62368-1, IEC 62368-1
• EMC: EN 55032/35, EN 61000-6-2/-6-4
• EMI: CISPR 32, FCC Part 15B Class A
• EMS:
  • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
  • IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m
  • IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
  • IEC 61000-4-6 CS: 10 V
  • IEC 61000-4-8 PFMF
• Railway: EN 50121-4
• Traffic Control: NEMA TS2
• Freefall: IEC 60068-2-32
• Shock: IEC 60068-2-27
• Vibration: IEC 60068-2-6
