Features and Benefits
- PCI Express x1 compliant
- 21.6 Kbps maximum baudrate for super fast data transmission
- 128-byte FIFO and on-chip H/W, S/W flow control
- Low profile form factor fits small-sized PCs
- Drivers provided for Windows (7 x86/x64, XP/2003/Vista/2008 x86/x64, 2000), Linux 2.4, Linux 2.6 (x86/x64),
- QNX 6, Windows XP Embedded, SCO OpenServer 5/6, UnixWare 7, Solaris 10 x86/x64
- 15 KV ESD protection on the board
Overview

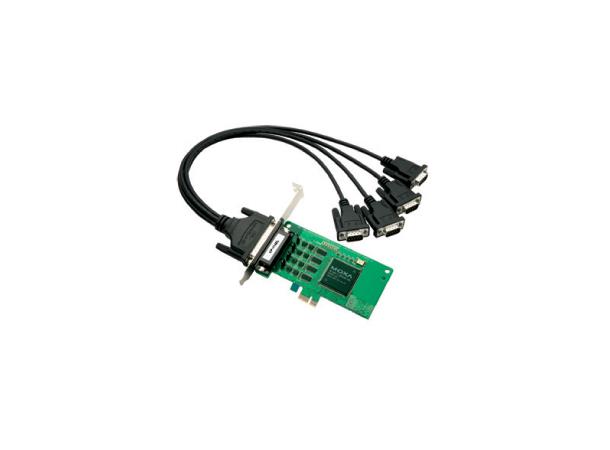

The CP-114EL and CP-114EL-I are smart, 4-port PCI Express boards designed for POS and ATM applications. The boards are a top choice of industrial automation engineers and system integrators, and support many different operating systems, including Windows, Linux, and even Unix. In addition, each of the board's 4 RS-232/422/485 serial ports supports a super fast 921.6 Kbps baudrate. The CP-114EL and CP-114EL-I provide full modem control signals to ensure compatibility with a wide range of serial peripherals, and their PCI Express "x1" classification allows the boards to be installed in any PCI Express slot.
Smaller Form Factor
The CP-114EL and CP-114EL-I are low profile boards that are compatible with any PCI Express slot. The boards require only a 3.3 VDC power supply, which means that the boards fit any host computer, ranging from shoebox to standard-sized PCs.
Drivers Provided for Windows, Linux
Moxa continues to support a wide variety of operating systems, and the CP-114EL/EL-I boards are no exception. Reliable Windows COM and Linux TTY drivers are provided for all Moxa boards, and other operating systems, such as WEPOS, are also supported for embedded integration.
