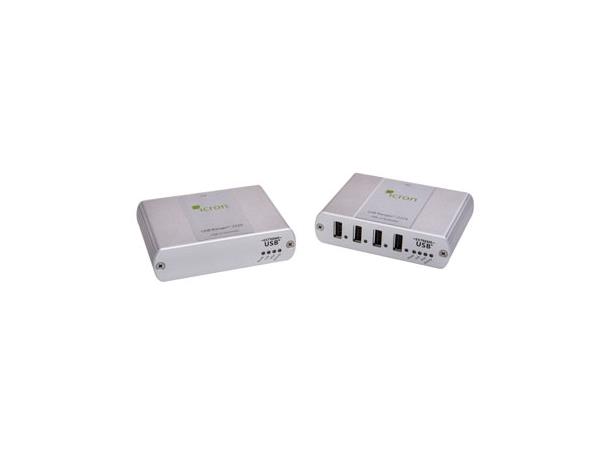

Icron USB Ranger® 2244
Singlemode Fiber Optic USB 2.0 Extender
Ranger 2244 extends USB 2.0 beyond the desktop up to 10km over singlemode fiber optic cabling using ExtremeUSB® technology.
Ranger 2244 Features
Powered by ExtremeUSB• ®. Long reach USB 2.0 enabled by Icron’s LionsGate™ USB 2.0 Extension ASIC.
Extends USB 2.0 high-speed and USB 1.1 (low-speed, full speed) devices up to 10km over fiber optics.•
Supports all USB device types: Control, Interrupt, Bulk and Isochronous at up to 480Mbps.•
Operates with USB 2.0 high-speed host controllers and USB 1.1 classic hosts.•
True plug and play, ready to operate right out of the box. No new driver installation required.•
Supports all major operating systems including Windows• ®, Mac OS®, and Linux®
Integrated hub provides four remote USB 2.0 ports. Number of devices can be increased using
• additional USB hubs.
Ideal for a wide variety of USB devices, from printers, scanners, hard drives, and audio devices,
• to touch screens, web cams, and game controllers.
AC power adapter at remote unit provides standard 500mA to each USB port.•
Power adapter at local unit is not required for normal operation.
Product Specifications
Range 6 miles (10km) over SMF
LEX unit USB connector
1 x USB Type B
LEX unit Link connector
1 x SFP Duplex LC
REX unit Link connector
1 x SFP Duplex LC
REX unit USB connector
4 x USB Type A
Maximum USB devices supported
14 (including USB hubs)
Power adapter Maximum Rating
5V DC @ 3A
Current available to USB at REX
4 x 500mA
LEX and REX unit dimensions
3.94 x 2.99 x 1.02 (100 mm x 76 mm x 26 mm)
Operating temperature range
0°C to 50°C
Total system shipping weight
2.0 lbs. (0.9 kilograms)
Regulatory testing
FCC (Class B), IC (Class B), CE (Class B)
ESD Rating
EMC EN-61000-4-2:2001 8kV Contact, 16kV Ai
