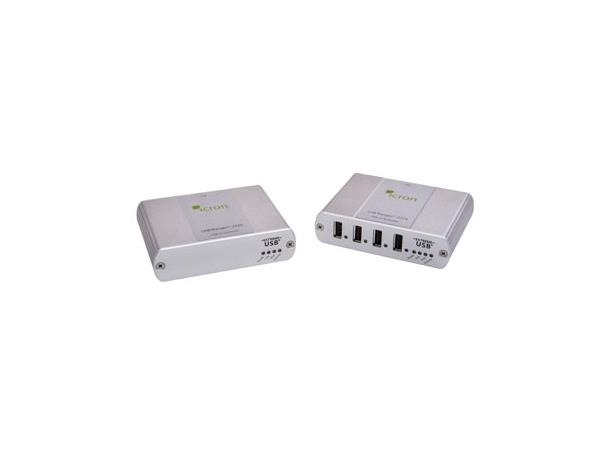

Icron USB Ranger 2224 Multimode Fiber Extender



USB 2.0 over Multimode Fiber

 The USB Ranger® 2224 is a four port USB 2.0 high speed extension solution, enabling USB 2.0 connections at up to 480Mbps over 500m/1640ft of multimode fiber optics. The Ranger 2224 provides a remote four port USB 2.0 powered hub delivering standard 500mA power and supporting all USB device types, including Isochronous web cams.







The USB Ranger 2224, and the Ranger 2200 family of products are powered by ExtremeUSB®, enabled by Icron’s LionsGate™ USB Extension ASIC. ExtremeUSB® provides true USB 2.0 extension at up to 480Mbps over a variety of media, without the need of additional software drivers. A true plug-and-play solution, the Ranger 2224 is compatible with all leading operating systems, and supports all USB device types from high-speed web cams, hard drives, printers, scanners, audio devices, touch screens, digital cameras and game controllers.







Ranger 2224 replaces the Ranger 442 fiber optic extender, adding support for USB 1.1 classic hosts and addressing the adverse operating environments ideal for ExtremeUSB®. The system is FCC Class B certified, meets EN-61000 16kV ESD immunity and is housed in a robust metal enclosure.







Applications







Industrial Control
 KVM Extension
 Digital Signage
 Home Network Integration
 Medical Device Connectivity
 Security: web camera, access control
