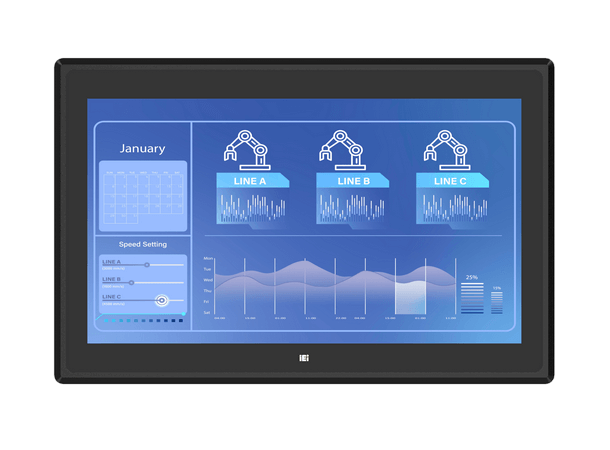

| LCD Display |
21.5” (16:9) |
| Resolution |
1920 (W) x 1080 (H) |
| Brightness |
350 cd/m² |
| Contrast Ratio |
1000:1 |
| LCD Color |
16.7M |
| Pixel Pitch (mm) |
0.3 x 0.3 |
| Viewing Angle (H-V) |
170°/160° |
| Backlight MTBF |
50000 hours |
| SBC Model |
PPC2MB-ADL-S-R10 |
| CPU |
Intel Core I5-12400 |
| Chipset |
Intel® H610 |
| Graphics Engine |
New Intel® Xe Graphics architecture with SRIOV,
Genlock |
| Display Output |
1 x HDMI 2.0 |
| Memory |
Two 260-pin 3200 MHz dual-Channel DDR4 SO-DIMM
(8GB standard
max. 64GB) |
| Touchscreen |
Multi-point projected capacitive type |
|
Surface hardness: =7H |
| Touch Controller |
Projected capacitive type: EETI 80 |
| Storage |
1 x 2.5" SATA HDD bay |
| Ethernet |
LAN1: Intel® I225 + LAN2: Intel® I225 |
| Expansion |
1 x PCIe Gen4 x 16 slot with x16 Signal |
|
1 x M.2 E-Key 2230 (PCIe Gen3 x1 + CNVIo + USB 2.0) |
|
1 x M.2 M Key 2242/2280 NVMe (PCIe Gen3 x 4) |
|
|
| Mounting |
VESA 100mm x 100mm,
Panel, Wall, Rack, Stand and Arm |
| Construction Material |
Aluminum front cover and sheet metal rear cover |
| Enclosure Color |
Black C |
| I/O
Ports, Switches and Buttons |
1 x HDMI 2.0 |
|
2 x 2.5GbE RJ45 |
|
2 x USB 2.0 (Type-A) |
|
2 x USB 3.2 Gen1 (Type-A) (5Gb/s) |
|
2 x USB 3.2 Gen2 (Type-A) (10Gb/s) |
|
1 x RS-232/422/485 (RS-485 support AFC)
4 x RS-232
1 x AC input
1 x Power switch
1 x Clear CMOS button
1 x Reset button
1 x AT/ATX switch |
| Power Supply |
250W AC input ATX power supply |
|
- Input: 100V~240V AC, 47Hz-63Hz |
|
- Output (max.): 3.3V@6A, 5V@12A, 12V@17A, -12V@0.5A,+5Vsb@2A |
|
Support AT/ATX mode, ErP/EuP Compliant |
| Thermal Solution |
Smart fan (2 x CPU fan, 2 x System fan) |
| TPM |
Intel® Platform Trust Technology |
| Watchdog Timer |
Software Programmable Support 1~255 sec. system reset |
| Operating Temperature |
|
| (with air flow) |
-10ºC ~ 50ºC |
| Storage Temperature |
-20ºC ~ 60ºC |
| Humidity |
10% ~ 95%@40ºC, non-condensing |
| IP Level |
IP 65 compliant front panel |
| Safety and EMC |
CE, FCC Class A, UKCA |
| ErP |
ErP 2009/125/EC |
| Dimensions(H x W x D) (mm) |
550.40 x 358.40 x 81.66 |
| Net Weight |
8.205 kg |
