Spec Item	Description
Color
Color	Black
Dimensions
Dimensions	136.6 x 102.4 x 52
Environment
Operating Temperature	-20°C ~ 60°C with air flow
Humidity	10% ~ 95%, non-condensing
Expansion Slots
Expansion Slots	1 x Full-size PCIe Mini card (support mSATA, colay with SATA) uIBX-250-BW-QGW-R20 has no PCIe mini slot
Form factor
SBC Form Factor	CPU:Intel® Celeron® N3160 (up to 2.24 GHz, quad-core, 2 MB cache, TDP=6W) Chipset:SoC System Memory:1 x 204-pin DDR3L 1.35 V SO-DIMM (system max: 8 GB) Pre-installed 2 GB
I/O Interface
I/O Ports	4 x USB 3.0 Ethernet: 2 x RJ-45 PCIe GbE by Intel® I211 controller 2 x RJ-45 RS-232/422/485 1 x HDMI, 1 x VGA 1 x Line-out, 1 x Line-in
Indicator&Buttons
Buttons	1 x Power button, 1 x AT/ATX switch
Indicators	HDD
System
Cooling method / System Fan	Fanless
Drive Bays	1 x 2.5' SATA 6Gb/s HDD/SSD drive bay
Weight
Weight	470 g/1.4 kg

Ordering Info.

Item No.	Description
uIBX-250-BW-N3/2G-R20	Fanless embedded system with Intel® Celeron® N3160 1.6 GHz (up to 2.24 GHz, quad core, TDP 6 W), 2 GB DDR3L pre-installed memory,12 V DC, with RS-232/422/485, USB 3.0, VGA/HDMI, dual Intel® PCIe GbE, RoHS

Package Contents
- 1 x Power Adapter
- 1 x Mounting Bracket
- 2 x RS-232/422/485 round cable

Number of articles found:

INDUSTRIAL PC

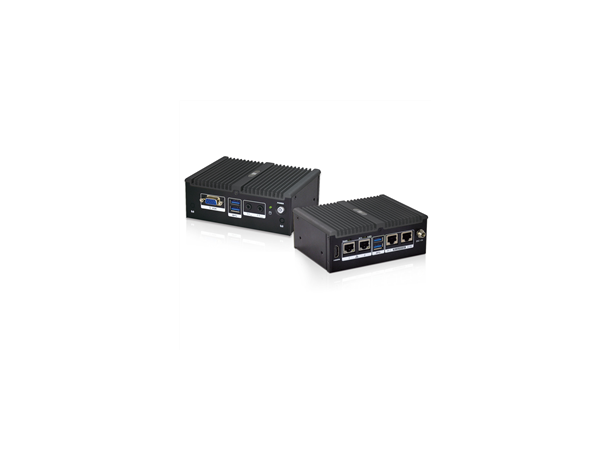

uIBX-250-BW-N3-R21

Product nr: 129921

Spec Item	Description
Color
Color	Black
Dimensions
Dimensions	136.6 x 102.4 x 52
Environment
Operating Temperature	-20°C ~ 60°C with air flow
Humidity	10% ~ 95%, non-condensing
Expansion Slots
Expansion Slots	1 x Full-size PCIe Mini card (support mSATA, colay with SATA) uIBX-250-BW-QGW-R20 has no PCIe mini slot
Form factor
SBC Form Factor	CPU:Intel® Celeron® N3160 (up to 2.24 GHz, quad-core, 2 MB cache, TDP=6W) Chipset:SoC System Memory:1 x 204-pin DDR3L 1.35 V SO-DIMM (system max: 8 GB) Pre-installed 2 GB
I/O Interface
I/O Ports	4 x USB 3.0 Ethernet: 2 x RJ-45 PCIe GbE by Intel® I211 controller 2 x RJ-45 RS-232/422/485 1 x HDMI, 1 x VGA 1 x Line-out, 1 x Line-in
Indicator&Buttons
Buttons	1 x Power button, 1 x AT/ATX switch
Indicators	HDD
System
Cooling method / System Fan	Fanless
Drive Bays	1 x 2.5' SATA 6Gb/s HDD/SSD drive bay
Weight
Weight	470 g/1.4 kg

Item No.	Description
uIBX-250-BW-N3/2G-R20	Fanless embedded system with Intel® Celeron® N3160 1.6 GHz (up to 2.24 GHz, quad core, TDP 6 W), 2 GB DDR3L pre-installed memory,12 V DC, with RS-232/422/485, USB 3.0, VGA/HDMI, dual Intel® PCIe GbE, RoHS

Package Contents
- 1 x Power Adapter
- 1 x Mounting Bracket
- 2 x RS-232/422/485 round cable
