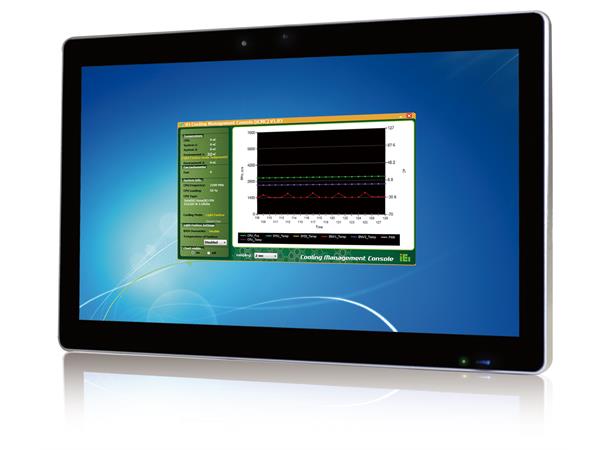

Panel PC


IEI/21,5"/Pentium G630T/4GB/PC Touch

Product nr: 120702
Spec ItemDescription
SystemCPUIntel® Core™ i7/i5/i3 and Pentium® processors
ChipsetIntel® ICH61
CommunicationWi-FiIEEE 802.11b/g/n
I/O InterfaceRAMSupport two 204-pin DDR3 SO-DIMM slot (max.
16GB) preinstalled with 4GB (2GB x 2)
I/O Ports and Switches2 x RS232 (DB9 Connector)
1 x RS422/485 COM Port (DB9 connector)
2 x GbE LAN (RJ-45 connector)
3 x USB 2.0
2 x USB 3.0
1 x HDMI
PowerPower Requirement9~36 VDC
EnvironmentOperating Temperature-10°C~50°C
Storage Temperature-20°C~60°C
StorageStorage1 x 2.5? SATA 3Gb/s HDD Bay
DimensionsDimensions546.85 x 345.82 x 70.35
Resolution1920 x 1080
Brightness (cd/m2)250
Contrast Ratio1000:1
LCD Color16.7M
Pixel Pitch (mm)0.248 (H) x 0.248 (V)
Viewing Angle (H-V)170º/160º
Backlight MTBF30000 (LED backlight panel)
TouchTouch Screenprojected capacitive type with USB interface
Touch ControllerEETI EXC7200 & EXC5404
Other FeaturesCamera2-megapixel camera with low light function
System CoolingFanless
MicrophoneDigital Microphone
I/O InterfaceI/O Interface2 x USB 3.0
3 x USB 2.0
1 x Type K connector
1 x Reset Button
1 x RS-422/485((DB-9))
2 x RS-232((DB-9))
1 x Power Switch
1 x Mic
1 x Line out
2 x LAN(GbE LAN (RJ-45 connector))
1 x HDMI
1 x DC Input Jack(9-36V DC jack)
1 x Clear CMOS Button
1 x VGA((DB-15))
1 x AT/ATX switch
