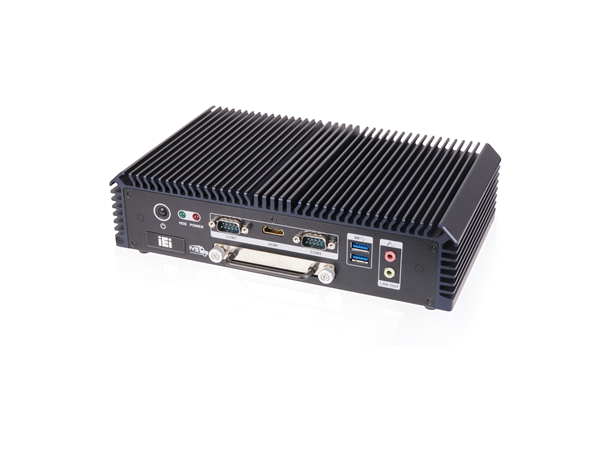

INDUSTRIAL PC

IVS-200-ULT2-C/4G-R10

Celeron 3765U/4GB ram/9-36VDC/4x LAN

Product nr: 120184
69187
Spec ItemDescription
Color
ColorBlue C
Dimensions
Dimensions255 x 63 x 150
Environment
Humidity5% ~ 95%, non-condensing
Operating Temperature-20°C ~ 60°C with air flow
Expansion Slots
Expansion Slots1 x Full size (co-lay mSATA)
1 x Half size
Form factor
SBC Form FactorCPU: Intel® Core i5-5350U (dual-core, 1.8 GHz, 15W TDP) or
Intel® Celeron® 3765U (dual-core, 1.9 GHz, 15W TDP)
Chipset: SoC
System Memory:2 x 204-pin DDR3L SO-DIMM. 1 x 4GB pre-installed
I/O Interface
I/O Ports2 x USB3.0
2 x USB2.0
4 x RJ-45 GbE Lan
2 x DB-9 RS-232/422/485
3 x DB-9 RS-232 (optional)
1 x VGA
1 x HDMI
8 bit digital I/O (4-bit input, 4-bit output) (optional)
1 x SIM slot
1 x Line out, 1 x Mic in
Indicator&Buttons
IndicatorsHDD/Power
System
Cooling method / System FanFanless
Drive Bays1 x 2.5"" SATA 3Gb/s HDD/SSD drive bay
Weight
Weight2.2 kg/3 kg
