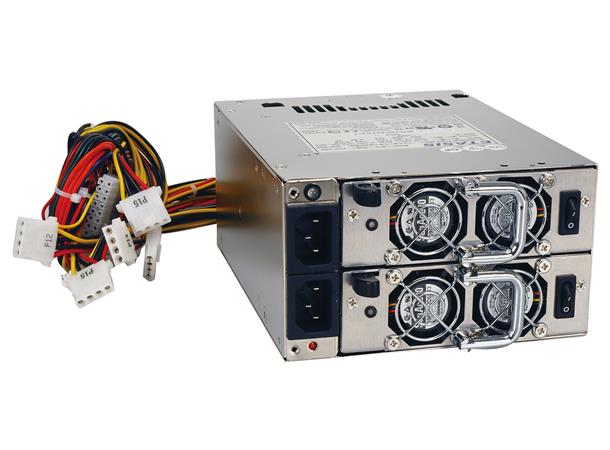

ACE-R4140AP-RS

400W AC-DC Mini Redundant Power Supply

Product nr: 104695
ACE-R4140AP-RS 400W AC-DC Mini Redundant Power Supply
Datablad
Specifications

InputVoltage:90 ~ 264 VAC Full Range
Frequency:47 Hz~ 63 Hz
Input Current:
8 A(RMS)@ 100 VAC
4 A(RMS)@ 240 VAC
Inrush Current:
80 A Max for 100 VAC
12 0 Max for 240 VAC
Output

Voltage

 Min.load

Max.load

 Ripple & Noise

+5V

2A

 25A

 50mVP-P

+12 V

2.5 A

30 A

120 mV P-P

-12 V

0.1 A

0.8 A

120 mV P-P

+3.3 V

2 A

25 A

50 mV P-P

 +5Vsb

0.1A

 2A

 50mVP-P

+5 V, +12 V total current not exceed 150 W
+3.3 V, +5 V, +12V total current not exceed 440 W
Hold-up Time17 ms Min.
Efficiency65 % Min
MTBF100,000 hours on max load at +25 °C
Output Connector20+4PIN ATX x1, 4PIN 12V CPU x1,
HDD/CDROM x8, FDD x2, SATA x2,
Buzzer Reset x1, T.T.L signal x1, LED
power x1
Storage Temperature-40 °C~ 70 °C
Operation Temperature0 °C~ 50 °C
Dimensions150 x 85 x 190 (mm)

Ordering Information Ordering Information

Part No.Description
ACE-R4140AP-RS400W Mini Redundant ATX Power Supply, with PFC
ACE-R4140AP1-RSA400W AC-DC ATX Redundant module, for ACE-R4140AP, with PFC
