• Built-in Web Server
• Web HMI
• Support for both Modbus TCP and Modbus UDP Protocols
• Communication Security
• 2-port Ethernet Switch for Daisy-Chain Topology
• Dual Watchdog
• Wide Operating Temperature Range: -25 ~ +75°C
• I/O Pair Connection
• Built-in I/O
• AI: 6 Channels with 240 Vrms Overvoltage Protection
• AO: 2 Channels
• DI/Counter: 2 Channels
• DO: 2 Channels

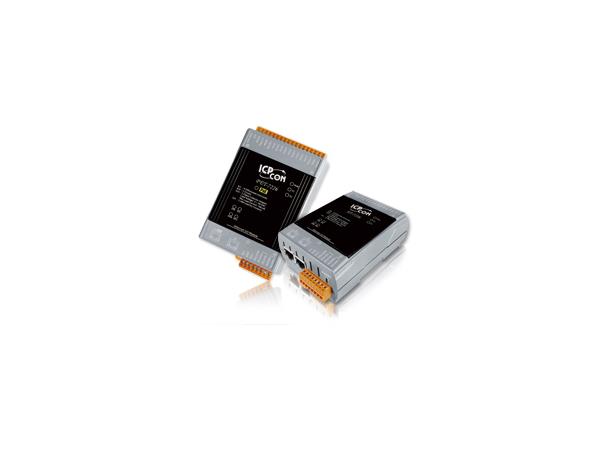

The ET-7026/PET-7026/ET-7226/PET-7226 is a multi-function module with 6-channel analog inputs, 2-channel analog outputs, 2-channel digital inputs and 2-channel digital outputs. It provides various programmable analog inputs (+/-500 mV, +/-1 V, +/-5 V, +/-10 V, +/-20 mA, 0 ~ 20 mA and 4 ~ 20 mA), and analog outputs (+/-5 V, +/-10 V, 0 ~ 20 mA and 4 ~ 20 mA). Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. Each analog input/output can be programmed to accept current or voltage as input/output depending upon the position of corresponding jumper.
