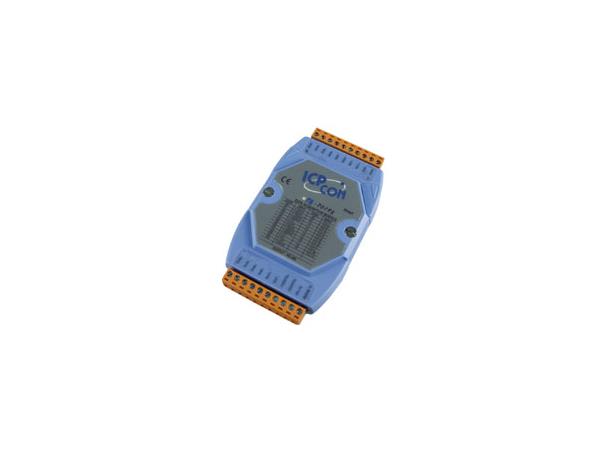

Analog Input
Input Channels 8 differential
Input Type +/- 15 mV, +/- 50 mV, +/- 100 mV, +/- 150 mV
+/- 500 mV, +/- 1 V, +/- 2.5 V, +/- 5 V,+/- 10 V
-20 mA ~ +20 mA, 4 ~ 20 mA, 0 ~ 20 mA (Jumper Selectable)
Resolution 16-bit
Sampling Rate 8 samples/ second (Total)
Accuracy +/-0.1%
-3dB Band Width 5.24Hz
Zero Drift 0.5uV/°C
Span Drift 25ppm/°C
Common Mode Rejection 86dB
Normal Mode Rejection 100dB
Input Impedance Voltage Input: >2M ohm, Current Input: 125 Ohm
Over Voltage Protection 240 Vrms
Open Thermocouple Detection Yes
Individual Channel Configuration Yes
4KV ESD Protection Yes, Contact for each terminal.
Intra-module Isolation, Field to Logic 3000 VDC
Interface
Interface RS-485
Format N, 8, 1 (details)
Baud Rate 1200 ~ 115200bps
LED Display
1 LED as Power/ Communication indicator
Power
Input +10 to +30 Vdc
Power Consumption 1.2W
Environment
Operating temperature -25 to 75°C
Storage temperature -40 to 85°C
Humidity 5 to 95% RH, non-condensing
Type Code Thermocouple Type Temperature Range °C
0E Type J -210 ~ +760
0F Type K -270 ~ +1372
10 Type T -270 ~ +400
11 Type E -270 ~ +1000
12 Type R 0 ~ +1768
13 Type S 0 ~ +1768
14 Type B 0 ~ +1820
15 Type N -270 ~ +1300
16 Type C 0 ~ +2320
17 TypeL -200 ~ +800
18 TypeM -200 ~ +100
19 Type L2 (DIN 43710) -200 ~ +900
