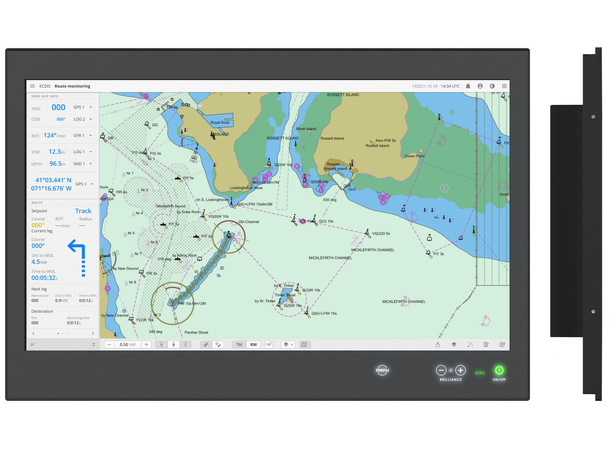

HD 27T27 MMD

27.0" Widescreen LED Monitor - Series X G3 - Full HD 1920x1080 - Multi-power AC/DC - Glass Display Control - IP66 Front - Black - Dimmable - USB-C, HDMI, DP, VGA - Optional Touchscreen.


The HD 27T27 MMD is a next-generation marine-grade monitor from Hatteland Technology’s trusted Series X line. As a G3 upgrade, it brings enhanced connectivity and video processing while maintaining full backward compatibility and the same rugged reliability that maritime professionals have relied on for decades.

Key Features

• Full HD Display: 27-inch widescreen with 1920x1080 resolution for sharp and vibrant visuals.
• Rugged Marine Design: Built to endure harsh maritime environments with IP66 front protection and robust construction.
• Futureproof Connectivity: Includes USB-C, HDMI 2.0, DisplayPort 1.4, and legacy VGA for seamless integration.

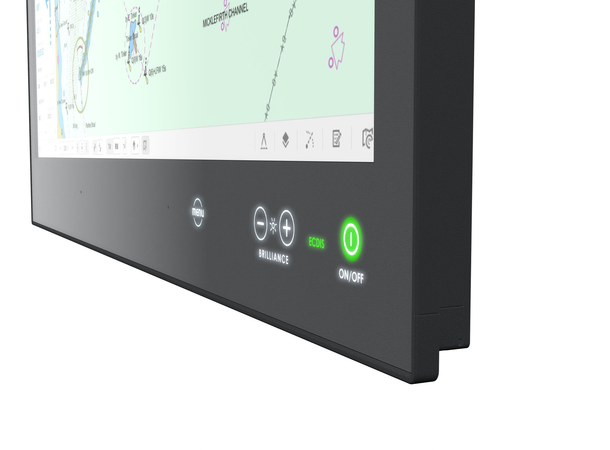

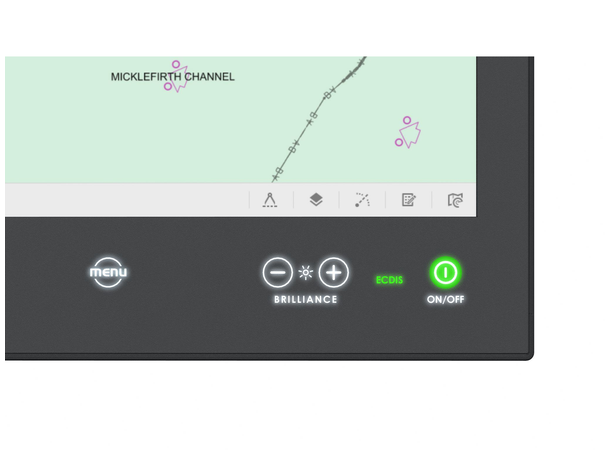

• Glass Display Control: Intuitive behind-glass controls with buzzer, light sensor, and OSD access.
• Flexible Power Options: Supports both 100–240V AC and 24V DC input for versatile installation.

HD 27T27 MMD Specifications

Display

• Screen Size: 27 inches
• Resolution: 1920 x 1080 (Full HD)
• Brightness: 350 cd/m²
• Contrast Ratio: 3000:1
• Viewing Angle: 89° (all directions)
• Response Time: 12 ms (typical)

Input/Output

• DisplayPort 1.4, HDMI 2.0, USB-C (DP 1.2 + USB 2.0), VGA
• SCOM RS-232, RS-422/485, Ethernet
• USB Type-A (Firmware Update), Potmeter/User I/O

Environmental Limits

• Operating Temperature: -15°C to +55°C
• Storage Temperature: -30°C to +70°C
• Humidity: Up to 95% (non-condensing)
• Altitude: Up to 4000m operating / 12912m storage

Certifications

• IP66 front, IP22 rear
• IEC 60945, IACS E10, CE, FCC
• Class Approvals: DNV, ClassNK, CCS, BV, KR, ABS*

Additional Options

• Projected Capacitive Touchscreen (Multitouch)
• Sunlight Readable / High Bright with Optical Bonding
• Color Calibrated (ECDIS)
• Expansion Boards and Mounting Accessories
