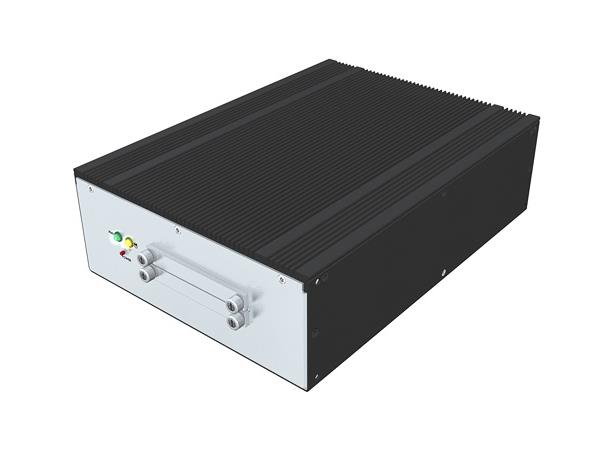

HT B30GJ STC-F32-M00000, Fanless Computer Standard Intel i7-6600U 2.60GHz 8GBRAM 240GBSSD-M OSWIN10IoT/64 ACDC
The HT B30 range is based on the latest Intel® chipset and Skylake processor platform, delivering
even more power for maritime technology developers to design and build high-end vessel control and
monitoring solutions that enable safer and more effecient maritime operations.
HT B30 computers are available in two new form factors, short depth and long depth, allowing for
fl exible installation options including 3U rack mounting in pairs. Using the same system architecture as
our new, second generation Series X Panel Computers, the HT B30 range offers signifi cant processing
speed and graphical performance improvements, which when combined with multiple-drive solid state
storage and silent, fanless operation, positioning it among the most advanced computing platforms for
maritime applications.
HT B30 computers can be delivered with a choice of three Intel® Core™ processors, up to i7. Graphical
output is handled by 1 x DVI-I, 1 x DVI-D and 1 x Display Port (DP) while standard interfaces include
4 x Ethernet Ports, 4 x USB2.0 and 4 x USB3.0. The HT B30 platform also supports a wide range of
interface modules such as CAN/NMEA COM/COM and DIO, ensuring it is ready off-the-shelf for all
maritime applications. In addition, HT B30G range of computers features a lightweight, fully enclosed
aluminium chassis and comes with Hatteland Display’s Multi-power system (both AC and DC power
built in).
